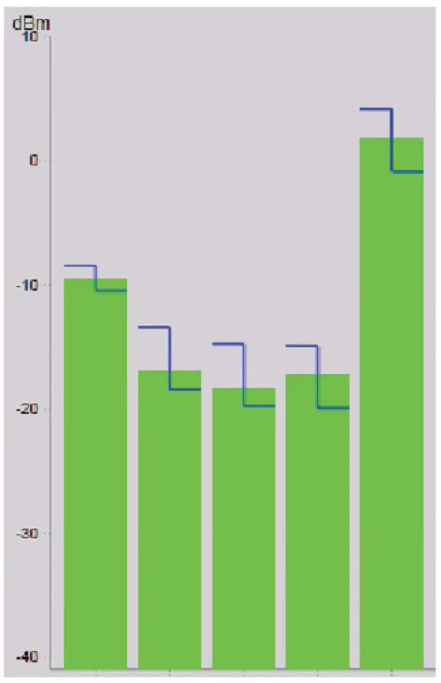

A technician is troubleshooting an intermittent loss-of-signal alarm on a DWDM line amplifier site and wants to consult official Nokia documentation to understand the exact alarm clearing procedure and probable causes before dispatching a field engineer. Which resource is the most appropriate starting point for this task?
Nokia's Alarm and Trouble Clearing Guides are release-specific documents that detail the probable causes, severity, and clearing procedures for each alarm. Hardware installation guides cover physical installation, not fault diagnosis, and datasheets are marketing-oriented, not technical references for troubleshooting. Generic internet resources are not authoritative or release-accurate.

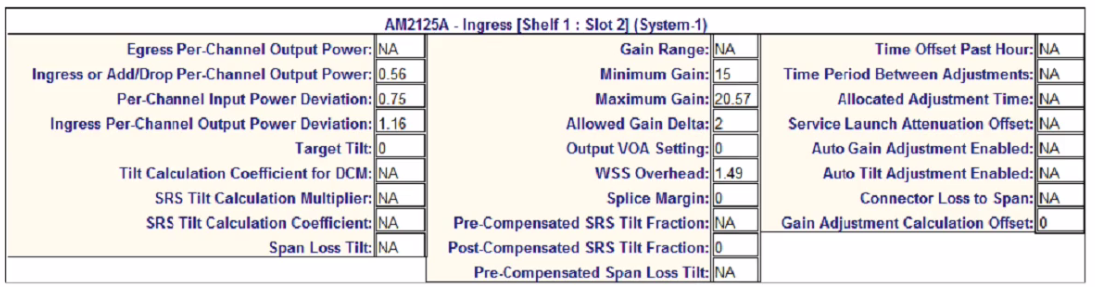

An optical signal originates at a transponder, passes through a multiplexer, several optical line amplifiers, a ROADM, and terminates at a receiving transponder. The receiving transponder reports low received optical power, but the transmitting transponder's output power is within specification. Where should the technician begin isolating the fault along the signal path?
Since the transmit power is confirmed good, the degradation must occur somewhere along the intermediate path. The correct approach is to trace the signal flow point-by-point through the mux, amplifiers, and ROADM, checking measured power levels at each stage, to isolate exactly where the loss or degradation is introduced. Jumping to conclusions such as replacing the receiver without verifying intermediate points wastes time and does not follow proper signal-flow-based fault isolation methodology.
While reviewing an End-to-End Path Trace (EPT) report for a wavelength service, an engineer notices that the report includes per-node optical power values, span loss, OSNR, and configured versus actual attenuation settings. The engineer needs to determine whether a specific span between two amplifier sites is experiencing excessive loss beyond what was provisioned. Which EPT parameter is most directly useful for this assessment?
EPT reports include measured span loss alongside the expected/engineered value for each span, allowing direct comparison to detect excessive attenuation (e.g., from a fiber issue or dirty connector). Uptime, firmware version, and management IP are not indicators of optical link health and are irrelevant to assessing span loss anomalies.
A network operations engineer observes a Loss of Signal (LOS) alarm on a line card, followed shortly by a Loss of Frame (LOF) alarm and a downstream Payload Missing Indication on a client-facing port. When correlating these events in the system log, the engineer determines that the LOS alarm timestamp precedes the others. What is the most likely root cause interpretation?
Correlating alarms chronologically is essential in root-cause analysis. Since the LOS alarm on the line side occurred first, it is the primary fault; the subsequent LOF and payload missing indications are downstream consequences of the initial signal loss propagating through the system, not independent issues. Treating them as unrelated would lead to wasted troubleshooting effort.
A technician suspects a receive-side issue on a transponder reporting degraded BER, but the transmit path performance monitoring data on the far end looks normal. To isolate whether the fault lies in the local receiver, the fiber plant, or the far-end transmitter, the technician applies a facility loopback at the local transponder's line-side receive port. What does a clean loopback test result indicate?
A facility loopback tests the local receive and re-transmit path in isolation from the rest of the network. If the loopback returns clean results, it confirms the local receiver electronics are functioning properly, meaning the degraded BER is more likely caused by an external factor such as fiber plant degradation or a problem at the far-end transmitter. This combines PM data with loopback results for effective root-cause narrowing, rather than jumping to hardware replacement.
40 questions covering all exam domains, starting from $20
Exam domains verified against: Official Nokia 4A0-265 exam guide, last checked September 2026.
Learn where to find official Nokia product documentation and technical references. Understand how to use support resources and tools during troubleshooting to speed up issue resolution.
Sample question from this domain above: Q1
Trace the path of an optical signal across network elements and identify key points where signal degradation can occur. Use signal flow understanding to narrow down fault locations quickly.
Sample question from this domain above: Q2
Understand the structure and content of EPT reports and identify key parameters relevant to diagnostics. Interpret parameter values to assess link and path health accurately.
Sample question from this domain above: Q3
Understand how alarms and conditions are raised in the system and use logs to trace event history. Correlate multiple alarms and logs to identify underlying issues effectively.
Sample question from this domain above: Q4
Use performance monitoring data to detect anomalies and apply loopback tests to isolate faults. Combine monitoring and loopback results for thorough root-cause analysis.
Sample question from this domain above: Q5
Diagnose transmission-related issues and adjust optical power levels to resolve faults. Apply troubleshooting techniques for signal quality problems in transmission paths.
Understand the purpose of the Wavelength Tracker feature and use it to monitor wavelength performance. Apply Wavelength Tracker to detect and troubleshoot wavelength-related faults.
Identify common line-side issues and correlate multiple alarms to find root causes. Apply troubleshooting steps systematically to resolve line faults.
Identify configuration-related transponder issues and verify transponder settings against expected parameters. Apply corrective steps to resolve configuration faults.
