A global logistics company is planning to expand its operations to multiple locations across continents. Their existing on-premises network is unable to scale to meet the demands of the growing number of sites and the increasing volume of East-West traffic within their data center. The company has chosen VMware NSX as their preferred network virtualization platform, aiming to simplify network management and improve intra-data center routing.
Which of the following would be part of the optimal recommended design?
Tier-1 Gateways for East-West Traffic (Correct Answer - C):
East-West traffic refers to communication within the data center (e.g., between workloads).
Tier-1 Gateways are optimized for East-West routing, ensuring efficient intra-data center traffic handling.
This minimizes unnecessary traffic to external routers, reducing latency and improving performance.
Incorrect Options:
(A - Centralized Service Ports for East-West Routing):
Centralized Service Ports (CSPs) are used for stateful services, not for general East-West routing.
(B - Aria Operations for Networks for North-South Routing):
Aria Operations for Networks (formerly vRealize Network Insight) is a monitoring and analytics tool, not a routing solution.
(D - Tier-0 for East-West Routing):
Tier-0 Gateways handle North-South routing (external connectivity), not East-West traffic.
VMware NSX 4.x Reference:
NSX-T Data Center Routing Design Guide
NSX-T Multi-Tier Gateway Architecture Best Practices
A digital marketing agency is planning to modernize its IT infrastructure to accommodate a growing number of applications and services. The agency's current physical network infrastructure is complex and difficult to manage due to the high number of VLANs. They have chosen VMware NSX as their preferred network virtualization platform, aiming to simplify the network design and increase flexibility. The agency is particularly interested in creating isolated networks for each application and optimizing East-West traffic.
Which of the following would be part of the optimal recommended design?
1. Why Overlay Networks & Tier-1 Gateways are the Best Choice (Correct Answer - C)
Using NSX Overlay Networks eliminates the complexity of VLAN-based segmentation, providing greater scalability and automation.
Each application gets its own NSX segment, ensuring strong isolation and improved East-West traffic flow.
Tier-1 Gateways handle intra-application traffic efficiently, reducing overhead on Tier-0 Gateways.
2. Why Other Options are Incorrect
(A & B - VLAN-Backed Segments):
VLANs limit scalability and increase network management complexity.
(D - NSX Edge Nodes Instead of Tier-1 Gateways):
NSX Edge nodes are used for North-South traffic. East-West traffic should be handled at the Tier-1 level for efficiency.
3. NSX-T Network Design Best Practices
Use Overlay Networks to eliminate VLAN scaling limitations.
Implement micro-segmentation via NSX Distributed Firewall for application security.
Leverage Tier-1/Tier-0 hierarchy to separate East-West and North-South traffic.
VMware NSX 4.x Reference:
NSX-T Overlay Networking and Transport Zone Design Guide
NSX-T Tier-1 vs. Tier-0 Gateway Best Practices

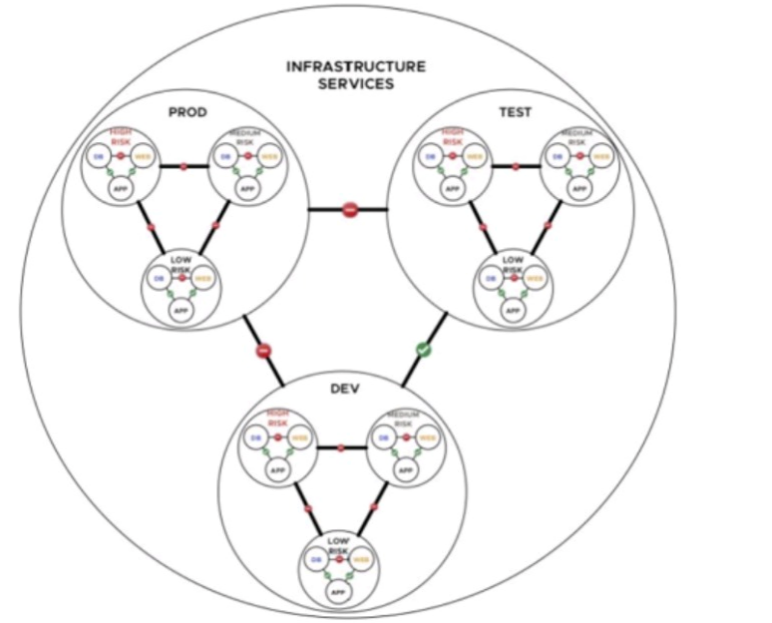

Refer to the exhibit.
A financial company is adopting micro-services with the intent of simplifying network security. An NSX architect is proposing a NSX segmentation logical design. The architect
has created a diagram to share with the customer.
Which design choice provides less management overhead?
1. Understanding the Exhibit and NSX Security Segmentation
The diagram represents NSX-T logical segmentation for a microservices-based financial company.
It categorizes workloads into three distinct risk levels:
High Risk (Red)
Medium Risk (Yellow)
Low Risk (Blue)
The objective is to enforce security policies with minimal management overhead while maintaining isolation between risk levels.
2. Why 'One Security Policy Per Level of Security' is the Best Choice (B)
Grouping workloads based on security levels (High, Medium, Low) simplifies firewall rule management.
By defining a single security policy per level of security, it reduces the need to create multiple firewall rules for each microservice individually.
Advantages of this approach:
Scalability: New workloads can inherit existing security policies without manual rule creation.
Simplification: Instead of hundreds of firewall rules, a few policies handle traffic isolation effectively.
Automation-Friendly: Security policies can be applied dynamically using NSX-T security groups.
3. Why Other Options are Incorrect
(A - Create One Firewall Rule Per Application Tier)
High overhead and complexity: Each application has its own rule, making it harder to scale as the number of applications grows.
Requires continuous manual rule creation, increasing administrative burden.
Better suited for small, static environments but not scalable for microservices.
(C - Create One Firewall Rule Per Level of Security)
Firewall rules alone do not provide granular segmentation.
A single firewall rule is insufficient to define security controls across multiple application tiers.
Security policies provide a more structured approach, including Layer 7-based controls and dynamic membership.
(D - Create a Security Policy Based on IP Groups)
IP-based security policies are outdated and not scalable in a dynamic microservices environment.
NSX-T supports workload-based security policies instead of traditional IP-based segmentation.
Microservices often use dynamic IP addresses, making IP-based groups ineffective for security enforcement.
4. NSX Security Best Practices for Microservices-Based Designs
Use NSX Distributed Firewall (DFW) for Micro-Segmentation
Apply security at the workload (vNIC) level to prevent lateral movement of threats.
Enforce Zero Trust security model by restricting traffic between risk zones.
Group Workloads by Security Posture Instead of Static IPs
Leverage dynamic security groups (tags, VM attributes) instead of static IPs.
Assign security rules based on business logic (e.g., production vs. development, PCI-compliant workloads).
Use Security Policies Instead of Individual Firewall Rules
Policies provide abstraction, reducing the number of firewall rules.
Easier to manage and apply to multiple workloads dynamically.
Monitor and Automate Security Policies Using NSX Intelligence
Continuously analyze workload communication patterns using VMware Aria Operations for Networks (formerly vRealize Network Insight).
Automate rule updates based on detected traffic flows.
A Solutions Architect is helping an organization with the Conceptual Design of an NSX solution.
This information was gathered by the architect during the Discover Task of the Engagement Lifecycle:
There are applications which use IPv6 addressing.
Network administrators are not familiar with NSX solutions.
Hosts can only be configured with two physical NICs.
There is an existing management cluster to deploy the NSX components.
Dynamic routing should be configured between the physical and virtual network.
There is a storage array available to deploy NSX components.
Which constraint was documented by the architect?
1. Understanding Constraints in NSX Design
A constraint is a limiting factor in a design that cannot be changed and must be worked around.
In this case, the organization's hosts are restricted to only two physical NICs, which can impact:
Overlay network design (Geneve traffic, TEPs allocation).
Traffic segmentation between management, storage, and data plane traffic.
High availability and redundancy configurations for NSX Edge and ESXi hosts.
2. Why 'Hosts can only be configured with two physical NICs' is the Correct Answer (C)
NIC limitations can impact NSX-T Transport Node Profiles, as best practices recommend at least 4 NICs (2 for management and vSAN, 2 for overlay transport).
With only two NICs, careful consideration must be given to:
Uplink Profile design (Active/Active vs. Active/Standby).
Physical redundancy using NIC teaming and VLAN segmentation.
Possible impact on performance if multiple types of traffic share the same NIC.
3. Why Other Options are Incorrect
(A - Dynamic Routing as a Constraint):
Dynamic routing (e.g., BGP, OSPF) is a design choice, not a hard constraint.
(B - CPU & Memory Availability in Management Cluster):
Having resources available is an enabler, not a constraint.
(D - IPv6 Applications):
IPv6 support is an NSX capability, not a constraint.
4. NSX Design Considerations for NIC-Constrained Hosts
Leverage VLAN-backed segments for underlay traffic.
Configure NIC teaming to optimize failover strategies.
Utilize Multi-TEP configurations to balance overlay traffic effectively.
Ensure NSX Edge nodes use DPDK-enabled NICs for high performance.
VMware NSX 4.x Reference:
NSX-T Transport Node Profile Design Guide
VMware Best Practices for NIC Teaming and Traffic Segmentation
NSX-T BGP and OSPF Routing Design Considerations
A company is planning to deploy NSX to provide a multi-tenant environment for their customers. The solutions architect is responsible for designing the network services to ensure that each tenant's traffic is isolated and secure.
Which of the following NSX features should the solutions architect use to achieve this goal?
Distributed Firewall for Multi-Tenant Security (Correct Answer - D):
NSX Distributed Firewall (DFW) enables tenant isolation at the virtual machine level.
It enforces security policies directly on vNICs, ensuring East-West traffic control without needing hardware firewalls.
This ensures multi-tenancy compliance, preventing cross-tenant communication unless explicitly allowed.
Incorrect Options:
(A - Load Balancing):
NSX Load Balancer improves application availability but does not provide traffic isolation.
(B - VLAN):
VLANs provide basic segmentation but do not offer granular control like DFW.
(C - NAT):
NAT provides IP address translation but does not ensure tenant security.
VMware NSX 4.x Reference:
NSX-T Data Center Multi-Tenancy Design Guide
NSX-T Distributed Firewall Best Practices
