Each question shows the correct answer and an explanation of why it is right
Please read this scenario prior to answering the question
The ArchiSurance enterprise document management solution plays a crucial role in supporting a large number of document types and managing a high volume of document-based transactions each day. Given its business-critical nature, the document
management solution is hosted redundantly across two geographically separate data center sites: Site A and Site B. Both sites are configured identically to ensure seamless operations.
Each site has a highly available data center network (DCN) that connects to the resilient ArchiSurance wide area network (WAN). Each claim management server is connected to its respective site's DCN, forming a converged network that interconnects
servers and storage arrays. A dedicated physical storage array is allocated to the claim management application within each DCN. Additionally, each site houses four powerful physical servers exclusively dedicated to the claim management application.
Among these servers, one remains on standby at any given time, while the other three take on specific roles in hosting the document, workflow, and application engines.
The standby server is responsible for monitoring the behavior of the other servers, providing a logging and reporting service. The active servers regularly transmit data to facilitate this monitoring functionality. In the event of a server failure, the standby
server steps in to perform resource reallocation, replacing the faulty server. However, this task requires manual intervention from a system administrator to reconfigure the logging and reporting service to adapt to the new environment.
Refer to the Scenario
The IT manager has asked you to model the hardware and networks that support the document management solution. This includes capturing the infrastructure components such as data center sites, servers, storage, and networks. Additionally, you
are expected to outline the necessary functionality and services required to enable failover within a server cluster. Given that both data centers share an identical configuration, it is sufficient for Site B to only show the associated networking.
Which of the following is the best answer?

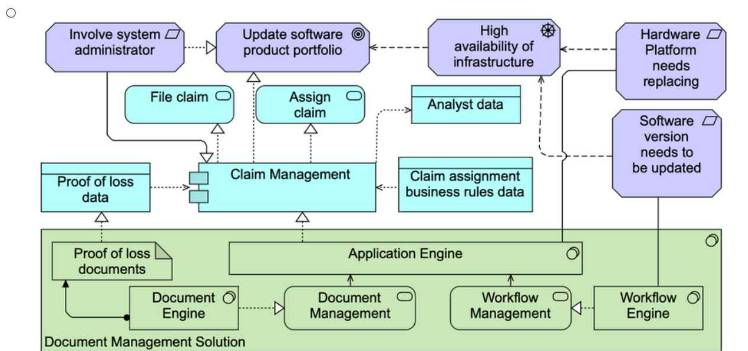

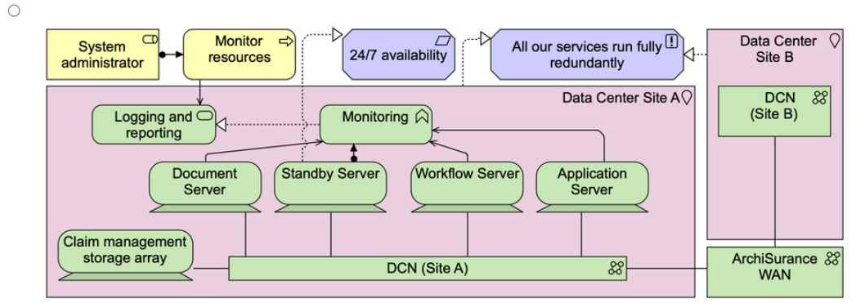

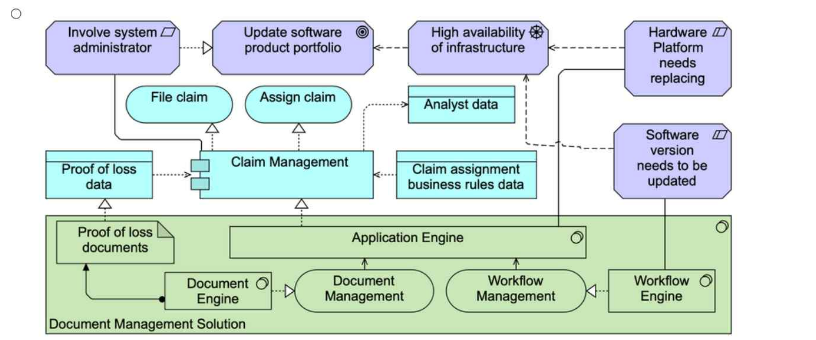

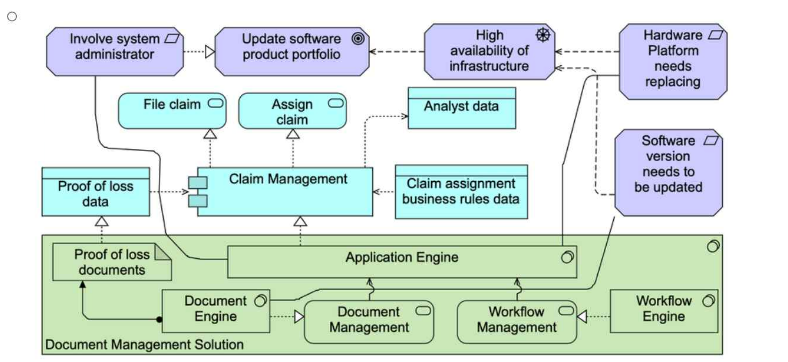

A.

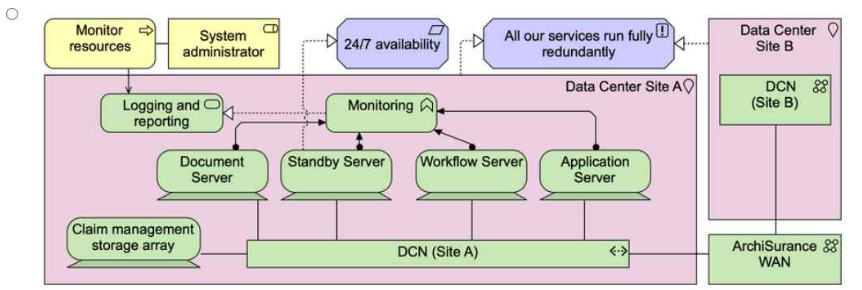

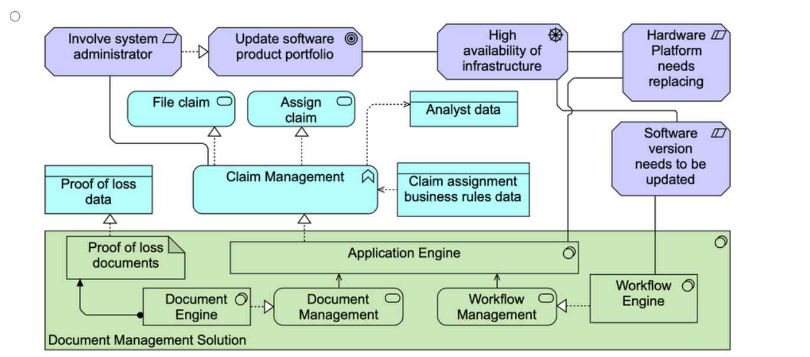

B.
C.
D.

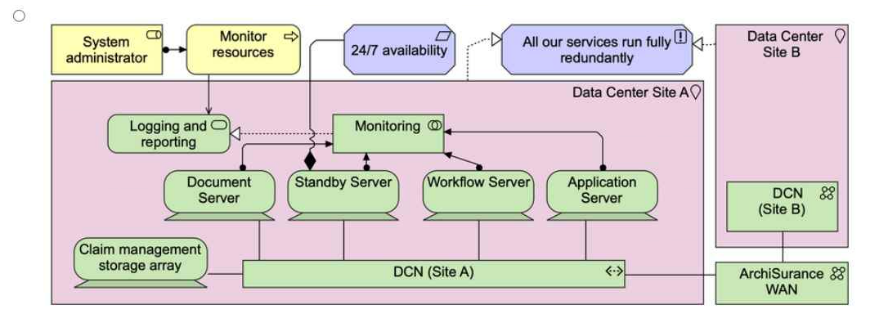

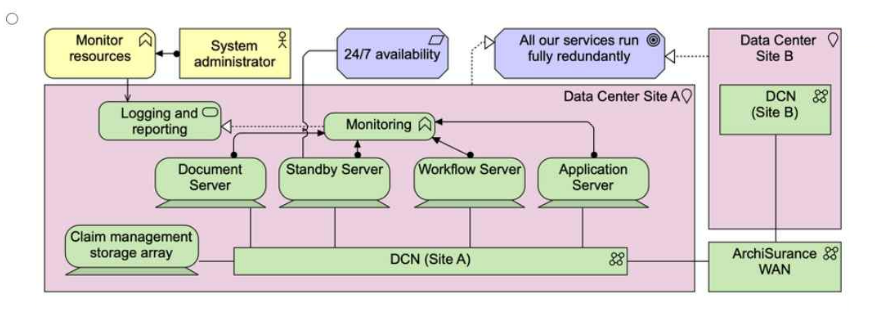

We need to identify the most accurate and complete model that represents:
Infrastructure Components -- Including data centers, servers, storage arrays, and networks.
Failover Capabilities -- Showing the standby server's role in monitoring and switching functionality upon failure.
Redundant Setup -- Ensuring the representation of both data centers (Site A and Site B), with Site B showing only networking.
Interconnectivity -- Between servers, DCN, and WAN.
Why D is the Best Choice:
All required infrastructure components are included, such as:
Physical servers (Document, Workflow, and Application Servers).
Standby Server for failover.
Claim Management Storage Array.
DCN (Data Center Network) for Site A and Site B.
ArchiSurance WAN for external connectivity.
The Standby Server is correctly linked to logging, monitoring, and reporting, showing its role in monitoring and failover.
Networking is modeled properly:
Both Site A and Site B have a DCN, correctly interconnecting storage and servers.
Site B does not duplicate servers but represents networking, as per the scenario.
Functionality of Failover is Modeled Accurately:
Monitoring and reporting services are depicted.
Manual intervention by a system administrator is present.
Why Not A, B, or C?
A: Does not fully capture the network and storage relationships clearly.
B: Similar to A but misses some essential network connections.
C: Incorrect failover representation, and networking elements are not clearly depicted.
Please read this scenario prior to answering the question
The ArchiSurance senior management, board members, customers, and major stockholders have expressed long-standing concerns regarding the business continuity risks associated with relying on a single data center. Located in an area prone to
flooding, earthquakes, and occasional water leaks from the cafeteria above, the current data center has significant vulnerabilities.
To address these concerns and mitigate the risks, ArchiSurance has developed a comprehensive plan to relocate its existing data center to two separate ready-to-use data centers in different cities. As a major undertaking, the approval of the Board of
Directors is required to proceed with the project.
The primary objectives of the data center move are to reduce the risk of business interruptions, reduce both planned and unplanned downtime for critical applications, and provide reassurance to ArchiSurance stakeholders. Ensuring minimal disruption
during the transition is crucial. However, several constraints make the planned migration to the new data centers particularly challenging. Certain critical ArchiSurance applications cannot be offline for more than one hour, and any planned downtime must
be restricted to specific four-hour windows on weekends. Additionally, the migration cannot take place during quarterly or year-end closing periods to avoid disrupting critical processing operations.
ArchiSurance management has devised a multi-phase data center transformation program to facilitate a smooth transition. Each phase is critical for establishing stable and fully functional data center configurations throughout the transformation process.
The initial phase entails detailed scheduling and planning to develop a comprehensive transformation plan aligned with ArchiSurance's timing and scheduling requirements. During the second phase, ArchiSurance will procure the necessary hardware and
software for the new data centers, while also seeking refunds for the hardware and software in the current data center once it is decommissioned. The third phase involves setting up the new data centers and conducting parallel testing of the new
hardware and software alongside the existing production environment. The transition between the old and new data centers occurs in the fourth phase, followed by the fifth phase, which is the decommissioning of the old data center. This involves
returning the hardware and software to obtain the contracted refunds. Each phase, from the second to the fifth, is initiated once specific conditions outlined in the previous phase have been met.
Refer to the Scenario
The IT department's leader has assigned you the task of creating a model to explain the rationale behind Archisurance's decision to transform its data center infrastructure. The model should show the concerns and motivations of the stakeholders
involved. Additionally, it should outline the specific goals to be achieved through the data center transformation program, the associated deliverables, and the limitations that must be considered throughout the program's implementation.
Which of the following answers provides the best explanation?

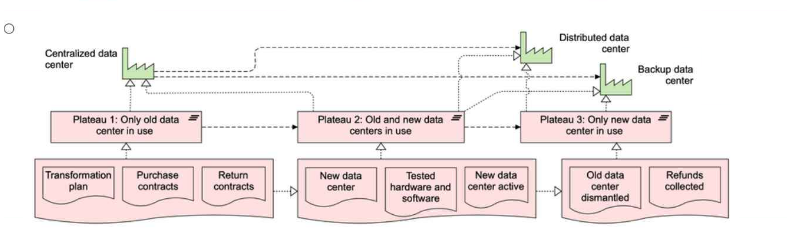

A.

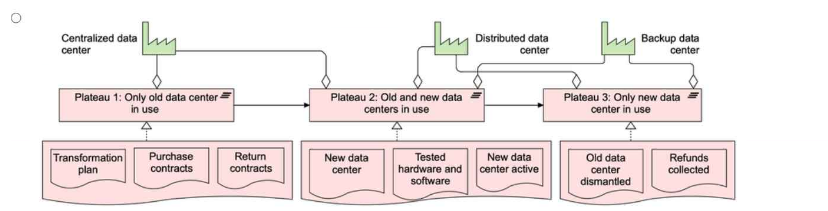

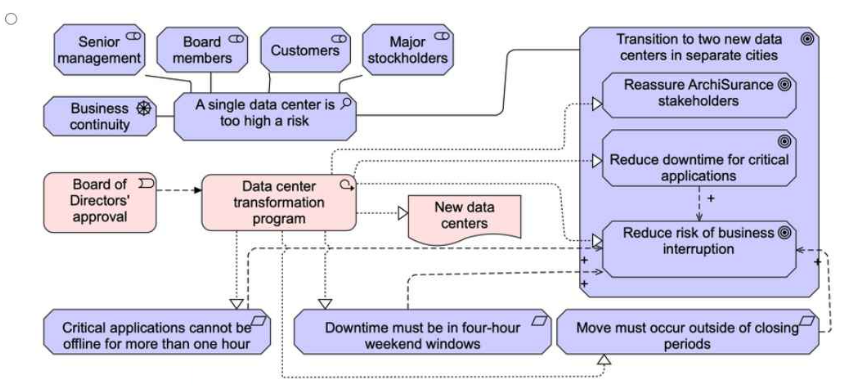

B.

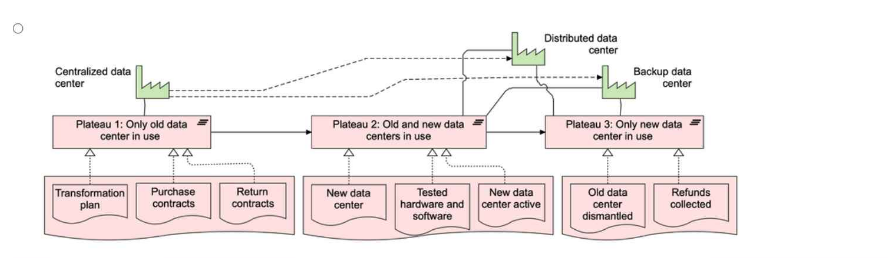

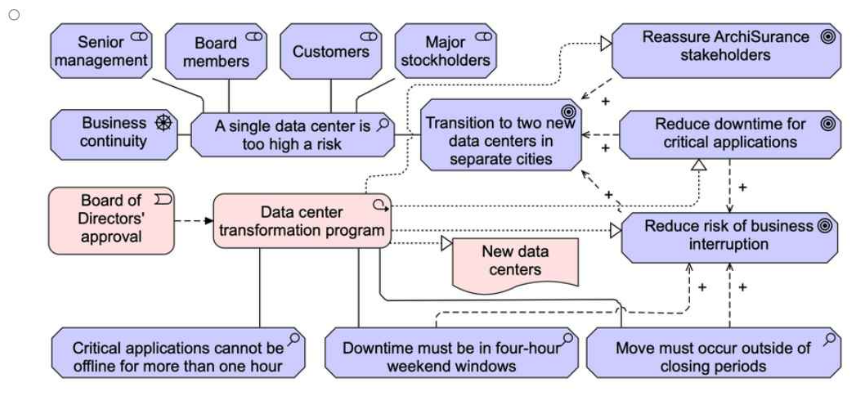

C.
D.

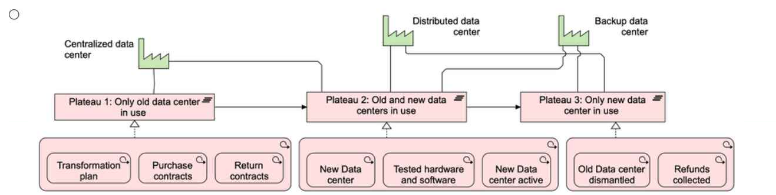

We need to identify the most accurate and complete model that explains:
Stakeholder Concerns & Motivations -- Including senior management, board members, customers, and stockholders.
Objectives & Goals -- Reducing business risks, minimizing downtime, and reassuring stakeholders.
Deliverables -- The transition to two new data centers and data center transformation program.
Constraints & Requirements -- Planned downtime limits, critical application uptime requirements, and scheduling constraints.
Why C is the Best Choice:
Includes all stakeholder concerns -- Clearly represents business continuity risks and the rationale for transitioning to two new data centers. Clearly defines the objectives -- Reducing downtime and risk of business interruption. Shows key constraints --
Critical applications cannot be offline for more than one hour.
Downtime must be in four-hour weekend windows.
The migration must avoid closing periods. Links deliverables to objectives -- The data center transformation program and new data centers are clearly positioned as solutions. Represents dependencies correctly -- Showing how each motivation leads to a goal, which leads to a deliverable.
Why Not A, B, or D?
A: Does not establish a strong link between the concerns and the solution clearly enough.
B: The structure does not align well with the scenario requirements, and some constraints and dependencies are missing.
D: Overcomplicates some relationships and does not emphasize stakeholder concerns effectively.
Please read this scenario prior to answering the question
ArchiCar is a specialized company that focuses on manufacturing luxury electric cars and powertrain components, along with producing battery-charging equipment. With its own distribution network and showrooms, ArchiCar adopts a direct-to-
customer sales model through online channels.
The manufacturing of ArchiCar's electric cars is carried out on fully automated assembly lines. Leveraging a cutting-edge manufacturing process, the company boasts an impressive ability to sell and deliver a vehicle within just one month from the
time of order placement. Anticipating significant growth, the CEO has set ambitious plans to increase annual production from 100,000 to 500,000 vehicles within a three-year timeframe.
To ensure the highest quality standards, ArchiCar relies on locally manufactured finished steel from the renowned ArchiMetal plant. ArchiMetal specializes in lightweight steels that allow ArchiCar to achieve a reduced vehicle weight without
compromising strength and crash performance. The finished steel is efficiently transported by rail to ArchiCar's production plant, where it is stored in a dedicated warehouse until required for the automated car assembly process. Conveyor belts
facilitate the seamless transfer of the finished steel from the warehouse to the assembly plant.
At the ArchiCar assembly plant, an optimized and streamlined assembly process is implemented, resulting in the production of 12 vehicles per hour. Once assembled, the cars are transported to a nearby distribution center using specialized trucks.
These vehicles are then stored at the distribution center until they are ready for delivery to their eagerly awaiting new owners.
Refer to the Scenario
You are a consultant to the CIO. She has asked you to illustrate the end-to-end technology processes at ArchiCar from raw materials to assembled cars ready for delivery.
Which of the following answers provides the best description?

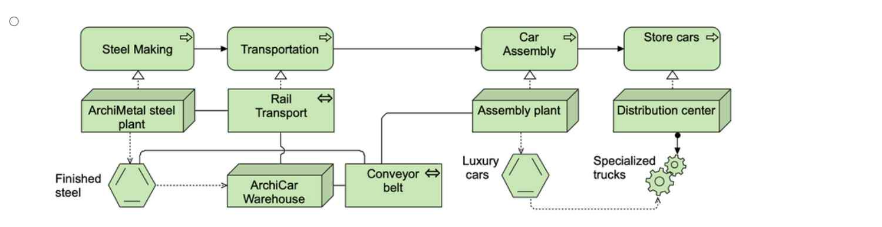

A.

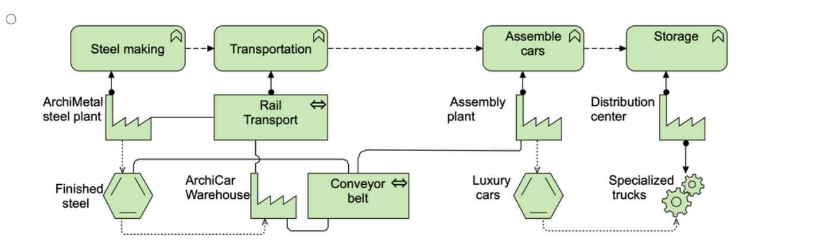

B.
C.

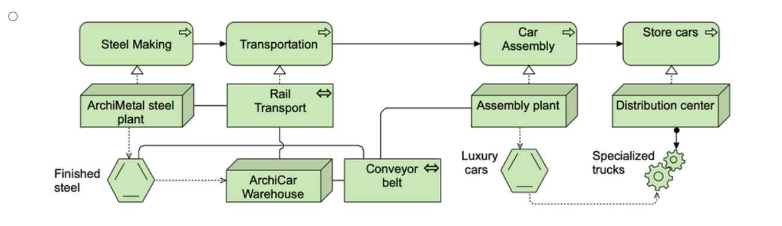

D.
In this scenario, the task is to model the end-to-end technology processes at ArchiCar, showing how raw materials (finished steel) are processed through the company's manufacturing, transportation, and distribution system, ultimately resulting in fully assembled cars ready for delivery.
Key ArchiMate 3.2 Concepts Applied:
Business Processes:
Steel Making: ArchiMetal manufactures finished steel, a key raw material for ArchiCar's production.
Transportation: The finished steel is transported by rail from the ArchiMetal steel plant to ArchiCar's warehouse.
Storage: The finished steel is stored in the ArchiCar Warehouse until it is required for the assembly process.
Car Assembly: The conveyor belt moves the steel from the warehouse to the assembly plant, where cars are assembled on automated lines.
Transportation (Specialized Trucks): Once assembled, the cars are transported to a distribution center using specialized trucks.
Storage (Distribution Center): The finished cars are stored in the distribution center, awaiting delivery to customers.
Application and Technology Components:
Conveyor Belt: The transfer of finished steel between the warehouse and assembly plant is automated via the conveyor belt.
Rail Transport and Specialized Trucks: Rail transport handles the movement of steel, and specialized trucks are used for car transportation to the distribution center.
End-to-End Flow:
The model needs to clearly depict the full process flow from the production of steel, through its transportation and storage, to the automated assembly of luxury cars and their eventual transportation to the distribution center.
The relationships between processes (e.g., steel making, transportation, car assembly, and storage) must be clear and follow the logical flow of operations.
Why Option D is Correct:
Option D provides a clear and accurate representation of the end-to-end process as described in the scenario.
It begins with the steel-making process at the ArchiMetal steel plant and follows through with the transportation of the finished steel to the warehouse by rail transport.
The process of moving steel via the conveyor belt from the warehouse to the assembly plant for car manufacturing is clearly depicted.
Once cars are assembled, they are transported to the distribution center using specialized trucks and are then stored until delivery, completing the end-to-end flow.
The relationships between processes and supporting components (e.g., conveyor belt, transportation methods) are clearly illustrated, following ArchiMate standards.
Why Other Options Are Incorrect:
Option A is incorrect because it misses some key elements of the process. It does not fully clarify the role of the warehouse or how the finished steel is transported between locations.
Option B misrepresents the process flow, particularly the storage and assembly process. The connection between steel production and car assembly is not as clearly illustrated.
Option C also lacks clarity in how the finished steel is moved from the warehouse to the assembly plant, and it does not accurately capture the flow of transportation and storage after car assembly.
Conclusion:
Option D is the best answer because it provides the most complete and clear description of the end-to-end technology processes at ArchiCar, from raw materials (finished steel) to assembled luxury cars ready for delivery. It aligns well with the scenario and adheres to ArchiMate 3.2 modeling standards, showing all necessary relationships between business processes and supporting components.
Please read this scenario prior to answering the question
The IT Operations (IT Ops) department at ArchiSurance has five core responsibilities, each encompassing a dedicated business process: (1) Batch Operations (Batch Ops), (2) Online Operations (Online Ops), (3) Security Operations (Security
Ops), (4) User Support and (5) Continuous Improvement. Service level agreements (SLAs) are in place for Batch Ops and Online Ops, and each Ops process generates monitoring data that is utilized by the Continuous Improvement process.
The System Ops category consists of Batch Ops, Online Ops, and Security Ops, each having an incident management sub-process. These sub-processes are triggered by Batch, Online, and Security Incidents, respectively. In the initial stages of
the incident management sub-processes, an Incident Alert is shared with the other System Ops processes by posting it to the Alert Buffer.
Batch Ops relies on a schedule that outlines all batch jobs and their dependencies. This schedule serves two sub-processes: Batch Planning, which updates the schedule for use by the Execution Management sub-process.
The Batch Ops process relies on a suite of interconnected applications to facilitate its operations. Among these applications, the Batch Scheduler plays a vital role by allowing users to manage a comprehensive database of jobs, job schedules, and
dependencies. It effectively launches batch jobs according to the information stored in the database.
Working in conjunction with the Batch Scheduler, the Batch Monitor application utilizes the job schedules as a reference point to monitor job execution. It identifies any exceptional conditions that may arise during the execution process. To ensure
effective handling of these exceptions, the Batch Monitor communicates the information to both the Batch Scheduler and the Incident Handler applications through the previously mentioned Alert Buffer.
The Incident Handler application operates based on a defined set of business rules. It uses these rules to determine the relevant systems and individuals that need to be notified in the event of each incident. Subsequently, the Incident Handler
application generates appropriate notifications according to these determinations.
Recognizing the criticality of the Batch Scheduler, Batch Monitor, and Incident Handler applications, ArchiSurance has implemented redundant hosting arrangements across multiple geographically distributed data centers. In each data center,
these three applications are supported by fully redundant virtual server clusters. Each cluster is connected to two site local area networks, both of which are further linked to separate storage array hardware devices.
Refer to the scenario
As part of an IT service management initiative, you have been assigned the task to show how applications and technology support the Batch Ops process. This should show the relationships between the applications, their functions, the data
they access, and the technology that hosts the applications and data, along with the networks that connect the servers. It is only necessary to model a single data center.
Which of the following answers provides the most complete and accurate model?

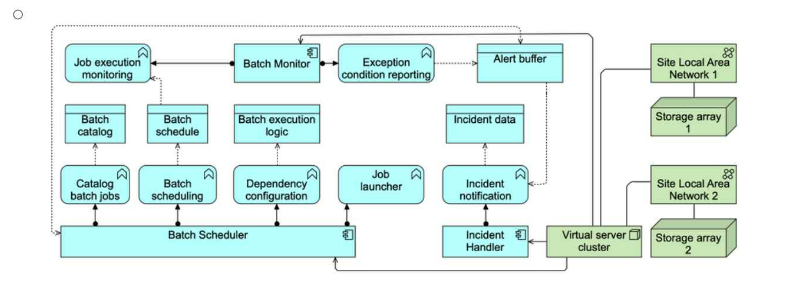

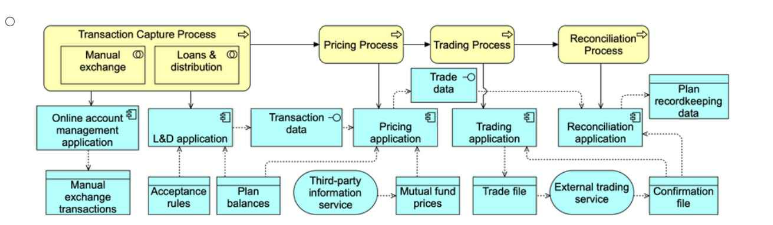

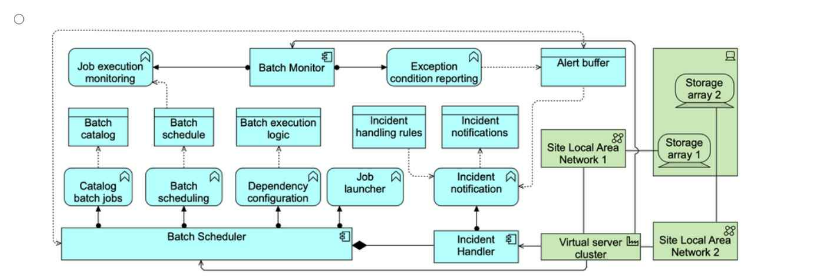

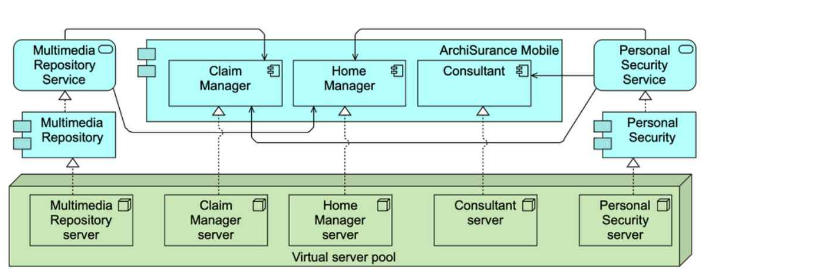

A.
B.
C.
D.

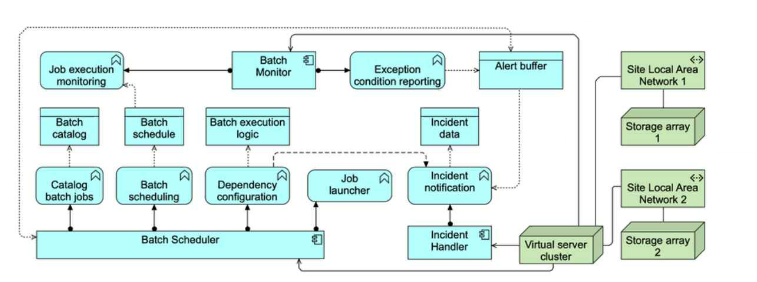

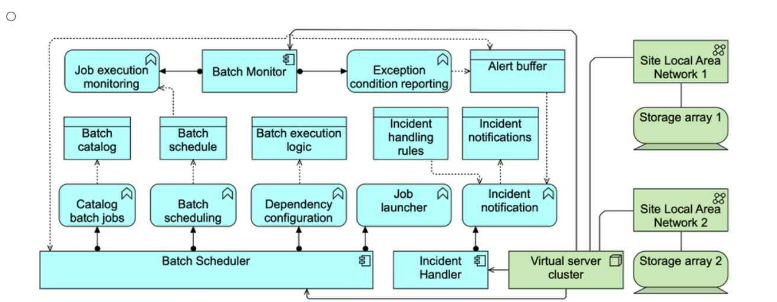

The correct answer is C as it provides the most complete and accurate model according to the ArchiMate 3 framework and the given scenario.
Here's why:
Business Processes and Sub-Processes:
Batch Operations (Batch Ops) is one of the core responsibilities in IT Operations, and its processes are modeled clearly. The Batch Scheduler is responsible for managing batch jobs, schedules, and dependencies.
The Batch Monitor is correctly shown to monitor the job execution and notify exceptions using the Alert Buffer.
The Incident Handler is used to notify relevant systems and individuals, triggered by the incident detection from Batch Monitor. This is modeled by the use of incident handling rules and notifications.
Application Layer (Application Components and Functions):
The Batch Scheduler, Batch Monitor, and Incident Handler are accurately depicted as the main applications. These applications are crucial for managing job scheduling, monitoring execution, and handling incidents.
These applications share the same virtual server cluster, which is an important detail reflecting redundancy and high availability, which was mentioned in the scenario.
The interrelationships between applications are accurately depicted: the Batch Scheduler launches jobs, the Batch Monitor checks their status, and Incident Handler deals with exceptions.
Data Access:
The Batch Scheduler accesses and updates batch jobs and schedules, and this is represented clearly.
The Incident data and Incident notifications are accurately modeled as being used by Incident Handler.
Technology Layer:
The Virtual server cluster, Storage arrays, and Site Local Area Networks are appropriately connected to support the application infrastructure.
Redundancy is shown through the use of multiple storage arrays and network connections, as described in the scenario.
Accuracy in Relationship Types (ArchiMate 3) Reference:
The relationships between components are modeled using ArchiMate 3 standards, such as flow relationships between the Batch Monitor and Alert Buffer or between the Incident Handler and storage components.
Triggering relationships exist between the applications that manage batch jobs and the monitoring/notification process, ensuring correct job execution and incident handling.
Conclusion: Answer C is the most complete model, as it accurately reflects the roles of the various applications, their interactions, and the underlying technology components in support of the Batch Ops process, following the guidelines and modeling standards of ArchiMate 3.
Please read this scenario prior to answering the question
ArchiCar has been a market leader in the premium priced luxury car sector for the last decade. Its product leadership strategy has brought superior products to market, and enabled ArchiCar to achieve premium prices for its cars. This strategy has
been widely successful in the past, but recently competitors have been offering comparable products and taking significant market share. The governing board of ArchiCar has identified opportunities in emerging markets where the ArchiCar brand
is associated with luxury and high performance products, but is thought to be too expensive for mass-market success. Based on this assessment, the board has made the decision to setup a subsidiary company to mass-produce affordable cars
locally. This will be achieved by focusing on a strategy of operational excellence. Such a strategy is ideal for such markets where customers value cost over other factors.
To facilitate this strategic transformation, the project has been divided into multiple phases within a five-year program. The initial phase, known as "Achieving Operational Excellence," is underway. The engineering team has begun devising an
action plan to drive the necessary changes and outlining the technological conditions that must be met. The product architect has identified three current capabilities - industry-leading engineering, high-quality materials sourcing, and cutting-edge
focussed R&D - along with their contributions to the new production philosophy.
Moving forward, it has been determined that two out of the three current capabilities require revision. Materials sourcing needs to be adjusted to meet optimization demands, and R&D targets must align with future goals to enable affordable
production. Additionally, process engineering is introduced as a fourth capability to shift the company's focus from products to a process-oriented approach.
The Enterprise Architecture team has been tasked with migration planning, and identifying key work packages and deliverables. They have identified two transition states between the current and future scenario. The first transition aims to adjust
current capabilities, including revising the R&D approach and procurement strategy. The second transition aims to shift from a product-centric mindset to a process-focused approach and adjust materials sourcing accordingly. It is important to
consider existing supplier contracts that cannot be immediately canceled during this process.
The Enterprise Architecture team has identified that the second transition must implement a process framework, in order to shift to a process focus and meet a number of requirements, including the requirement for end-to-end process thinking. As
this requirement impacts procurement processes, it also impacts the procurement strategy.
Refer to the Scenario
You have been asked to model parts of the overall scenario, including migration planning, the motivations driving the migration, and the work packages necessary to achieve the desired deliverables.
Which of the following answers best describes the scenario?

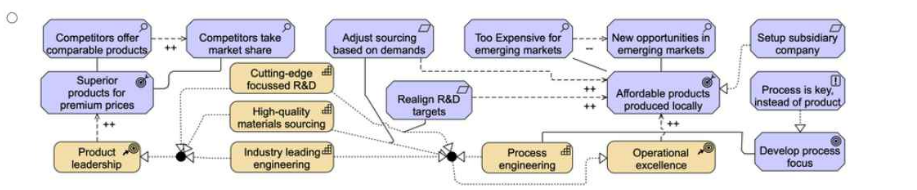

A.

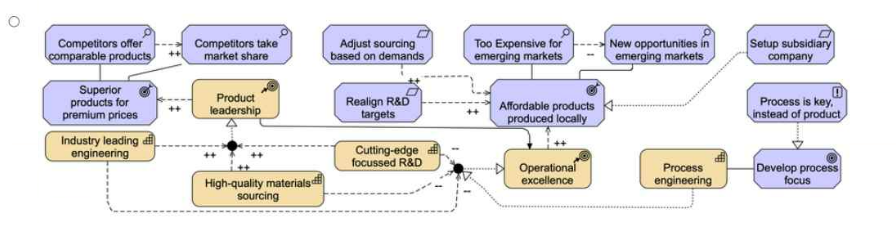

B.

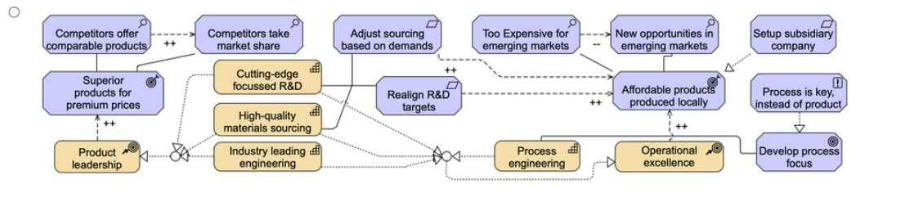

C.

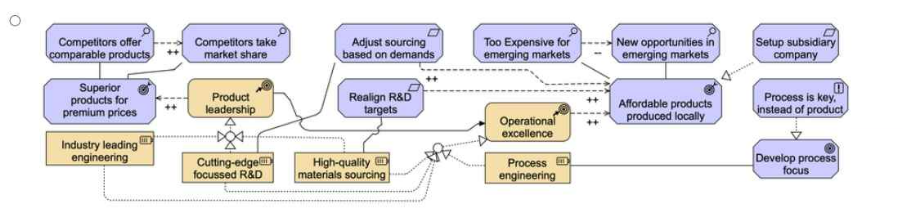

D.

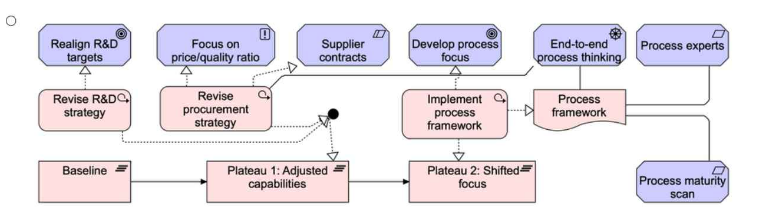

This scenario involves migration planning for ArchiCar as it transitions from a product-centric approach to an operational excellence strategy for mass-producing affordable cars in emerging markets. The task is to model the steps involved, including work packages, deliverables, and the motivations driving the transitions.
Key ArchiMate 3.2 Concepts Applied:
Capabilities and Transition Phases:
The existing capabilities---R&D, material sourcing, and engineering---need to be adjusted to fit the new strategy. In particular:
Revising R&D targets to align with the goal of affordable production.
Revising the procurement strategy to optimize material sourcing.
Introduction of a process focus in the second phase to shift from a product-centered approach to operational excellence.
Two transition states are identified:
Plateau 1 (Adjusted Capabilities): Focuses on revising the R&D strategy and procurement strategy.
Plateau 2 (Shifted Focus): Involves shifting to a process-oriented focus, adjusting material sourcing, and implementing a process framework to enable end-to-end process thinking.
Work Packages and Deliverables:
Work packages include activities such as revising R&D strategy and procurement strategy during the first transition, and then developing process focus and implementing a process framework in the second transition.
These work packages are linked to key deliverables:
Plateau 1: Realigning R&D and procurement strategies to achieve adjusted capabilities.
Plateau 2: Implementing a process framework, shifting to process-oriented thinking, and achieving the operational excellence goals.
Motivation Elements:
The migration is driven by a need to realign current capabilities (such as focusing R&D on affordability and optimizing procurement) and a requirement to shift focus from product leadership to operational excellence.
The external driver is the competition and market opportunity in emerging markets, where cost is more critical than luxury.
Dependencies and Constraints:
Supplier contracts may impose constraints on how quickly procurement strategies can change, which is considered in the transition planning.
The process framework must be implemented in a way that supports end-to-end process thinking.
Why Option B is Correct:

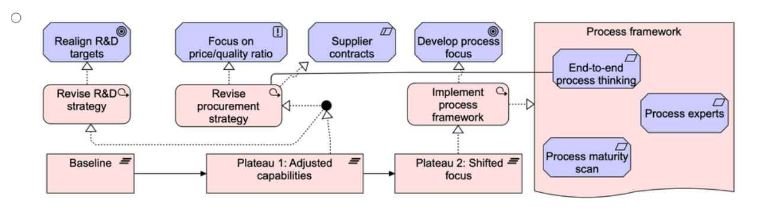

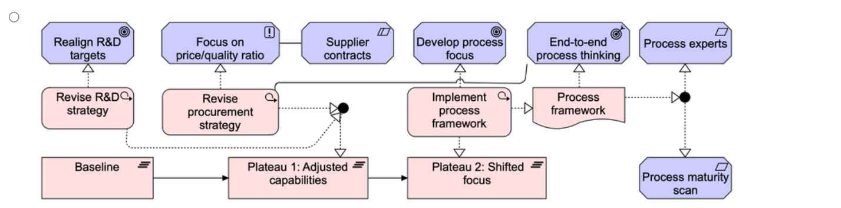

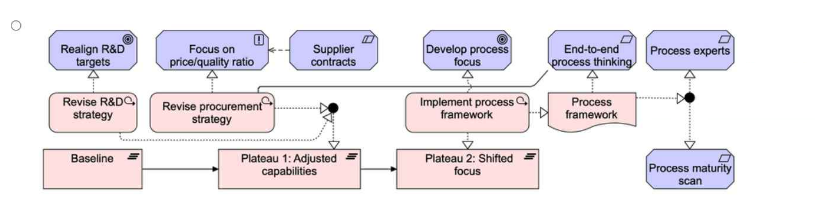

Option B accurately reflects the two transition phases (Plateaus 1 and 2) and shows the appropriate work packages and deliverables in line with the scenario.
It clearly models the steps for revising R&D strategy and procurement strategy in the first transition, and the shift to a process focus in the second transition.
The process framework and its link to end-to-end process thinking and procurement strategy are also correctly modeled, fulfilling the requirements of the scenario.
Motivations for the changes, such as the focus on the price/quality ratio, and the external drivers for shifting strategy are well captured.
Why Other Options Are Incorrect:
Option A and Option C misrepresent or omit important relationships between work packages, such as the link between the process framework and the end-to-end process thinking.
Option D does not correctly capture the sequence of work packages and the logical flow of transitions between phases.
Conclusion:
Option B provides the most complete and accurate description of the scenario, correctly illustrating the migration planning, motivations, and the work packages necessary to achieve the target state. It aligns well with ArchiMate 3.2 modeling standards and meets the scenario's requirements.
12 questions covering all exam domains, starting from $20
Exam domains verified against: Official The Open Group OGA-032 exam guide, last checked September 2026.
Understand the ArchiMate language for enterprise architecture modeling, including how it supports development of architectures across different layers. Learn the key definitions including ArchiMate Core Framework, Architecture Viewpoints, Concepts, and Relationships.
Describe the top-level language structure and the three layers of the ArchiMate Core Language. Understand abstraction, nesting, and the separation of concepts from notation. Learn how colors and notational cues are used in ArchiMate modeling.
Describe the hierarchy of Behavior and Structure elements including Active Structure elements, Behavior elements, and Passive Structure elements. Understand specializations and Composite elements like Grouping and Location.
Describe different categories of generic relationships including Structural relationships (Composition, Aggregation, Assignment, Realization), Dependency relationships (Serving, Access, Influence, Association), Dynamic relationships (Triggering, Flow), and Specialization. Learn about relationship connectors like Junctions.
Describe the structure of the Motivation elements metamodel. Understand the usage of Stakeholders, Drivers, Assessments, Goals, Outcomes, Principles, Requirements, Constraints, Meanings, and Values in enterprise architecture.
Describe the structure of Strategy elements metamodel. Understand how to use Resources, Capabilities, Value Streams, and Courses of Action. Learn the relationships between Strategy elements and Motivation and Core elements.
Sample question from this domain above: Q3
Describe the usage of Business Layer elements including Active Structure elements (Business Actors, Roles, Collaborations, Interfaces), Behavior elements (Processes, Functions, Interactions, Events, Services), and Passive Structure elements (Objects, Contracts, Representations, Products).
Sample question from this domain above: Q2
Explain how to apply Application Layer elements in real-case modeling situations. Understand Active Structure elements, Behavior elements, and Passive Structure elements within the application context.
Sample question from this domain above: Q4
Explain how to apply Technology Layer elements and physical elements in real-case modeling situations. Understand Active Structure elements, Behavior elements, and Passive Structure elements in technology infrastructure.
Sample question from this domain above: Q1
Explain the proper usage of relationships between core layers in real-case modeling situations. Understand derivation relationships applied between layers and how to correctly link business, application, and technology elements.
Sample question from this domain above: Q5
Explain elements and relationships in the Implementation and Migration metamodel. Understand how to apply these elements to develop transition architecture models and how they relate to other aspects and layers.
Explain how to define and classify architecture viewpoints and the steps needed. Understand how to create views applying viewpoint mechanisms and concepts from different layers. Apply the viewpoint mechanism in real-case modeling situations based on stakeholder concerns.
Explain adding attributes to ArchiMate concepts and relationships through profiles and user-defined profiles. Understand specialization of elements and relationships, including inherited properties and new graphical notation through stereotypes and icons.
Common questions about the exam itself
