Nokia 4A0-D03 Practice Exam Questions & Answers

7 Free Questions Last reviewed November 17, 2026 Prepared & Reviewed by the ValidExamDumps Editorial Team

56 Practice Questions (Our Bank)
90 minutes Exam Duration
80% Passing Score
USD 125 Official Exam Fee
Exam Facts

Nokia 4A0-D03 Exam Details

Key details for this exam, checked against the published exam outline

Exam Code
4A0-D03
Full Name
Nokia SR Linux EVPN and Data Center Interconnect
Issuing Body
Nokia
Question Format (Our Bank)
Multiple Choice
Delivery
Online proctored or at a Pearson VUE test centre
Eligibility
No mandatory prerequisites
Practice Questions

Free 4A0-D03 Practice Questions

Each question shows the correct answer and an explanation of why it is right

VA
ValidExamDumps Editorial Team Every question and its answer is checked by our 4A0-D03 exam preparation team, who also write the explanation shown with each one. How we research and review these pages

Question 1 Domain 1 EVPN on SR Linux

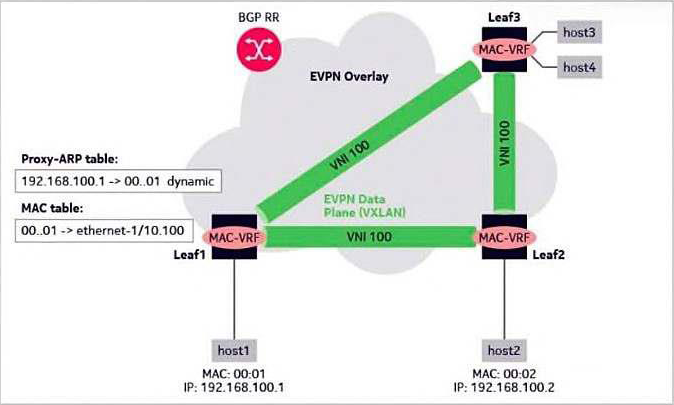

Consider the exhibit.

Question 1 exhibit

Leaf-1 has received an ARP request from host-1 for host-2. Leaf-1 has added host-1's MAC address in its MAC table and host-1's MAC/IP addresses in its proxy-ARP table.

Which of the following steps is FALSE?

Correct Answer A
Explanation

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

When Leaf-1 receives an ARP request from Host-1, it learns the source MAC address in the local MAC table and learns the source IP/MAC binding in the proxy ARP table. For EVPN distribution, the relevant control-plane advertisement is an EVPN route type 2 MAC/IP advertisement containing Host-1's MAC and the actual host IP address, 192.168.100.1. This allows remote PEs to populate their EVPN-derived forwarding and proxy ARP state with the correct endpoint binding. Option A is false because advertising the host MAC with the IP address set to 0.0.0.0 does not represent the learned MAC/IP binding required for proxy ARP synchronization. A MAC-only RT-2 advertisement may exist in EVPN contexts, but the question specifically states that Leaf-1 has learned the MAC/IP binding through ARP and is distributing that information. Therefore, the valid advertisement must include the real host IP address. Remote PEs use the MAC/IP route to learn the endpoint, not an all-zero IP placeholder for this proxy ARP learning event. Reference: EVPN RT-2 MAC/IP advertisement, proxy ARP table population, endpoint synchronization.

Question 2 Domain 4 L2 and L3 EVPN Multi-homing

Which of the following statements about the decoupled gateway-based data center interconnect solution is FALSE?

Correct Answer D
Explanation

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

In a decoupled gateway-based DCI design, the data center border leaf and the WAN PE are separate devices. Traffic between them can be identified using VLAN tags, allowing different data center EVPN services to be mapped to corresponding WAN VPN services. This architecture provides a clean operational boundary: the border leaf remains aligned with the data center EVPN/VXLAN fabric, while the WAN PE handles WAN VPN transport, QoS, security policy, and service interconnection. The separation gives a strong demarcation point for troubleshooting and administrative control. Option D is false because the WAN PE does not maintain an MP-BGP EVPN peering session with the data center route reflector. In the decoupled model, the route reflector remains part of the data center EVPN control plane, while the WAN PE exchanges routing or service information with the border leaf through the local handoff model. Direct WAN PE-to-data-center-RR peering would blur the separation that defines the decoupled design and would make the WAN PE part of the data center EVPN overlay control plane, which is not the intended architecture. Reference: decoupled gateway DCI, VLAN handoff, WAN VPN mapping, security/QoS demarcation, route-reflector separation.

Question 3 Domain 2 Layer 2 EVPN

Which of the following statements about the Layer 2 EVPN configuration/operation in a Nokia SR Linux is FALSE?

Correct Answer B
Explanation

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

In SR Linux, a Layer 2 EVPN service is implemented using a MAC-VRF network instance. The MAC-VRF represents the tenant bridge domain and is associated with access subinterfaces and a VXLAN data-plane mapping. Local hosts are learned through the data plane when Ethernet frames arrive on local interfaces. Remote hosts, however, are not learned by flooding or by configuring static per-peer VXLAN interfaces. They are learned through MP-BGP EVPN updates, especially EVPN route type 2 MAC/IP Advertisement routes. Option B is false because SR Linux does not require a separate manually configured VXLAN interface toward each remote VTEP for the MAC-VRF. Instead, the MAC-VRF is bound to VXLAN encapsulation and a VNI, while remote VTEPs and their MAC reachability are discovered dynamically through the EVPN control plane. This is one of the central advantages of EVPN compared with static VXLAN flood-and-learn models: the overlay endpoints and endpoint reachability are signaled through BGP, reducing manual configuration and improving scale. Reference: SR Linux L2 EVPN MAC-VRF configuration, MP-BGP EVPN learning, VXLAN data-plane mapping.

Get the complete 4A0-D03 question set $20$40

Get Full Access

Question 4 Domain 3 L3 EVPN

Which of the following statements about the configuration of a Layer 3 multi-homing with a centralized router is FALSE?

Correct Answer B
Explanation

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

Layer 3 EVPN multi-homing with a centralized router uses an Ethernet Segment to associate multiple leaf routers with a common external L3 attachment. The centralized router is part of that attached segment from the forwarding perspective, and the connected leaf routers advertise third-party or customer prefixes into EVPN so that remote leaves can reach those prefixes through the multi-homed attachment. For L3 EVPN, learned customer prefixes are normally advertised using EVPN route type 5, which carries IP prefix reachability. In an all-active design, remote leaf routers may load balance traffic to the customer prefix through multiple attached leaf routers because the ES next-hop allows the remote PE to understand that the prefix is reachable through a multi-homed Ethernet Segment. The false statement is that every router participating in the Ethernet Segment must be configured with all-active mode. Multi-homing mode is a design and configuration property of the EVPN PEs participating in the ES, and designs may use single-active or all-active behavior depending on redundancy and forwarding requirements. Reference: L3 EVPN multi-homing, centralized router attachment, EVPN RT-5 prefix advertisement.

Question 5 Domain 2 Layer 2 EVPN

Which of the following is always found in an extended community associated with an EVPN update?

Correct Answer A
Explanation

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

The route target is the extended community consistently associated with EVPN updates to control route import and export between EVPN instances. In SR Linux EVPN services, route targets determine which MAC-VRF or IP-VRF should import a received EVPN route. This is essential for tenant separation because multiple tenants may use overlapping MAC or IP address spaces while sharing the same physical fabric and BGP control plane. The AFI/SAFI is not an extended community; it identifies the BGP address family and subsequent address family used to carry EVPN NLRI. The EVPN route type is also not an extended community; it is part of the EVPN NLRI structure and identifies whether the route is RT-1, RT-2, RT-3, RT-4, RT-5, and so on. The VXLAN network ID may be carried or inferred through service and encapsulation-specific attributes, but it is not universally present as the required extended community in every EVPN update. The route target is the mandatory policy element that enables receiving PEs to place EVPN routes into the correct service context. Reference: EVPN extended communities, route-target import/export policy, tenant service identification.

Question 6 Domain 1 EVPN on SR Linux

Which EVPN route-type (RT) is used in multi-homing scenarios to support aliasing and fast convergence?

Correct Answer A
Explanation

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

The EVPN route type used for aliasing and fast convergence in multi-homing is RT-1, the Ethernet Auto-Discovery route. RT-1 has two important forms: Ethernet A-D per Ethernet Segment and Ethernet A-D per EVI. These routes advertise reachability to a multi-homed Ethernet Segment and to a specific EVPN instance on that segment. Remote PEs use this information for aliasing, meaning they can forward traffic toward any eligible PE attached to the same Ethernet Segment, even when a specific MAC was advertised by only one PE. RT-1 also supports fast convergence because withdrawal of Ethernet A-D routes quickly informs remote PEs that an attachment path or PE is no longer valid, avoiding slow MAC aging as the primary failure-detection mechanism. RT-4 Ethernet Segment routes are related to multi-homing, but their main function is Ethernet Segment discovery and Designated Forwarder election. RT-2 advertises host MAC/IP reachability, and RT-3 builds multicast/BUM replication lists. Therefore, RT-1 is the precise answer for aliasing and fast convergence. Reference: EVPN multi-homing route types, Ethernet Auto-Discovery, aliasing and convergence behavior.

Question 7 Domain 4 L2 and L3 EVPN Multi-homing

Consider the exhibit.

Question 7 exhibit

Which of the following statements is FALSE?

Correct Answer C
Explanation

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

In an SR Linux Layer 2 EVPN MAC-VRF, locally attached MAC addresses are learned through the data plane on local access interfaces, while remote MAC addresses are learned from MP-BGP EVPN control-plane advertisements and installed with a VXLAN next-hop. The exhibit shows one local learned MAC on an Ethernet subinterface and another MAC learned through EVPN with a VXLAN interface and VNI 100. The remote VTEP or next-hop information identifies the remote endpoint, and the VNI maps the received VXLAN traffic to the correct MAC-VRF service. The false statement is C because saying that the MAC address associated with the vxlan-interface ''will not age out'' is too absolute. A remote EVPN MAC is not aged in the same way as a local data-plane-learned MAC, but it can still be removed when the corresponding EVPN route is withdrawn, invalidated, or no longer present in the control plane. The ''N/A'' style aging behavior does not mean permanent retention. Reference: SR Linux MAC-VRF verification, local MAC learning, EVPN-learned remote MACs, VXLAN VNI mapping.

Study Guide

What the Nokia 4A0-D03 Exam Covers

Exam domains verified against the Official Nokia 4A0-D03 exam guide, last checked November 2026.

Domain 1 EVPN on SR Linux

Understand the purpose and application of EVPN in data centers, including EVPN building blocks with MP-BGP control plane and VXLAN data plane. Study BGP EVPN route types, basic EVPN operations, and hands-on configuration of BGP and VXLAN tunnels for EVPN on SR Linux, including leaf and spine underlay networks and BGP route reflectors.

Sample questions from this domain above Q1Q6

Domain 2 Layer 2 EVPN

Learn L2 EVPN use cases and operations, including configuration of MAC-VRF for L2 EVPN with SR Linux CLI. Examine L2-related EVPN routes, MAC protection, MAC mobility and MAC duplication monitoring. Study proxy-ARP implementation for IP duplication detection and anti-spoofing in L2 EVPN environments.

Sample questions from this domain above Q3Q5

Domain 3 L3 EVPN

Explain the use case for L3 EVPN; Describe the L3 EVPN Asymmetric Model and its implementation using the EVPN MAC/IP route type 2; Describe the L3 Symmetric Model and its implementation using the EVPN IP Prefix Route Type 5; Explain the purpose of IRB interfaces and the anycast-gateway IP address; Configure both an Asymmetric and Symmetric L3 EVPN with SR Linux CLI; Configure a L3 EVPN PE-CE BGP peering and verify how BGP path attributes are propagated across the EVPN; Hands-on Labs:; L3 EVPN – Asymmetric model with anycast-gateway IP addresses; L3 EVPN – Symmetric model with host-route advertising; Configure a PE-CE BGP peering in the L3 EVPN

Sample question from this domain above Q4

Domain 4 L2 and L3 EVPN Multi-homing

Understand multi-homing use cases and redundancy modes including all-active and single-active configurations. Study Ethernet Segment concepts, designated forwarder election algorithms with EVPN route type 4, and the local-bias mechanism to prevent L2 traffic loops. Learn EVPN auto-discovery route type 1 variants for aliasing and mass withdrawals.

Sample questions from this domain above Q2Q7

Domain 5 DCI And 7750 SR interoperability

Learn data center interconnection options including gateway-less and gateway-based solutions over WAN networks. Configure and verify L2 EVPN DCI solutions demonstrating SR Linux interoperability with 7750 SR MPLS-based EVPN-VPLS and L3 EVPN DCI solutions with legacy MPLS-based IP-VPN solutions.

FAQ

4A0-D03 Exam FAQ

Common questions about the exam itself

What background do I need to take the 4A0-D03 exam?
There are no mandatory prerequisites for the 4A0-D03 exam. However, the course content assumes you have foundational networking knowledge and familiarity with data center concepts. Many candidates complete the Data Center Fabric Fundamentals course or equivalent training first to build the required knowledge.
How difficult is the 4A0-D03 exam and what makes it challenging?
The 4A0-D03 is an expert-level exam that tests deep knowledge of EVPN and data center interconnect concepts across multiple layers and configurations. The difficulty comes from needing to understand how different EVPN route types, MAC mobility, multi-homing modes, and interoperability solutions work together in real-world scenarios.
Which topics are typically the hardest for candidates preparing for 4A0-D03?
Most candidates find L3 EVPN symmetric and asymmetric models and multi-homing configurations with designated forwarder elections the most challenging. Mastering these requires understanding both the conceptual models and hands-on configuration of IRB interfaces, anycast gateways, and Ethernet segment configurations.
How long should I prepare for the 4A0-D03 exam?
Preparation time varies based on your background, but candidates with data center networking experience typically need four to eight weeks of focused study. This should include completing the instructor-led course or self-study materials, working through hands-on labs, and practicing with the provided practice exam.
What happens on exam day for the 4A0-D03?
The exam is a 90-minute multiple-choice test consisting of 40 questions. Your total appointment time is 110 minutes, which includes 20 minutes for an introductory survey before the actual exam. The exam is administered online proctored or at a Pearson VUE test centre, and you need to achieve 80 percent to pass.
What are the retake and rescheduling policies for 4A0-D03?
Nokia does not publish specific retake or rescheduling policies on the exam page. You should contact Pearson VUE directly about their policies for rescheduling exam appointments or retaking the exam if you do not pass on your first attempt.
How long is the 4A0-D03 certification valid for?
The Nokia Certified Data Center Fabric Network Expert certification is valid for three years from the date you pass the exam. After three years, you must recertify by passing the exam again or completing other recertification requirements to keep your designation current.
What job roles is the 4A0-D03 certification suited for?
The 4A0-D03 is designed for data center network engineers and architects who design and implement EVPN-based data center networks. It qualifies you for roles involving data center fabric design, troubleshooting, and DCI solutions using Nokia SR Linux and interoperability with legacy 7750 SR platforms.
How does 4A0-D03 fit into the Nokia Data Center Fabric certification track?
The 4A0-D03 is the second written exam required for the Nokia Certified Data Center Fabric Network Expert certification. You must first pass the Data Center Fabric Fundamentals exam (4A0-D01), then pass 4A0-D03, and finally pass a practical lab exam to achieve the full expert-level certification.
Can I take 4A0-D03 without completing the Data Center Fabric Fundamentals exam?
Yes, there are no mandatory prerequisites listed for taking 4A0-D03. However, if your goal is to earn the Nokia Certified Data Center Fabric Network Expert certification, you will need to pass both 4A0-D01 and 4A0-D03 written exams plus the practical lab exam. Without 4A0-D01, you cannot complete the full expert certification.
