The ARE 5.0 Project Planning & Design (PPD) exam, administered by NCARB, validates your ability to manage the early and mid-stage phases of architectural projects. This exam tests knowledge of site analysis, building codes, systems integration, and project budgeting, skills essential for architects advancing toward licensure. This page outlines the exam syllabus, question formats, and practical preparation strategies to help you study efficiently and build confidence before test day.
Use this topic map to guide your study for NCARB Project Planning & Design (ARE 5.0 Project Planning & Design (PPD)) within the NCARB Certifications path.
The ARE 5.0 Project Planning & Design exam uses multiple-choice and scenario-based items to assess both conceptual knowledge and applied reasoning in realistic project contexts.
Questions progress in difficulty and emphasize real-world application, requiring you to synthesize information across environmental, regulatory, technical, and financial domains.
Efficient preparation involves mapping the five core topics to a structured study schedule, practicing with realistic questions, and conducting timed reviews to build pacing and confidence. Allocate study time proportionally to topic weight and your own knowledge gaps.
Explore other NCARB certifications: view all NCARB exams.
Strengthen your preparation with up-to-date resources from validexamdumps.com. These materials align to Project Planning & Design and cover practical scenarios with clear explanations.
Visit the exam page to download the PDF, Online Practice Test, or get a Bundle Discount offer for both formats: ARE 5.0 Project Planning & Design (PPD).
Codes & Regulations and Project Integration of Program & Systems tend to represent a significant portion of the exam, as they directly impact project feasibility and compliance. However, all five domains are tested, and your preparation should address each topic thoroughly. Review the NCARB candidate handbook to confirm current topic weightings.
Site analysis (environmental conditions) informs which building systems are viable and cost-effective, while codes establish minimum performance and safety requirements that constrain system selection. For example, a site with poor solar access may require enhanced mechanical cooling, which increases budget and affects system layout. Understanding these interdependencies helps you answer scenario-based questions that combine multiple domains.
Many candidates overlook the relationship between design decisions and cost implications, for instance, selecting a more complex structural system without considering budget impact, or failing to account for soft costs in preliminary estimates. Practice questions that ask you to evaluate cost trade-offs and justify budget decisions based on project constraints.
Read the scenario carefully and identify the key constraints (site, code, program, budget). Then work through each answer option systematically, checking whether it addresses all relevant constraints. Scenario items reward integrated thinking, so practice linking environmental, regulatory, technical, and financial factors in your reasoning.
Focus on your weakest topic areas and re-work scenario-based questions under timed conditions to build speed and accuracy. Review explanations for any items you miss, and create a quick reference sheet of key codes, standards, and formulas. Avoid cramming new material; instead, reinforce concepts you have already studied and build confidence through targeted practice.

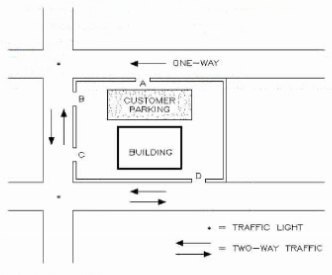

Refer to the exhibit (urban commercial site sketch).
In the urban commercial site shown in the sketch, which is the most convenient location for a truck entrance and exit from the site?
Comprehensive and Detailed Explanation From Exact Extract:
When planning truck entrances and exits on an urban commercial site, several key factors are considered: traffic flow, safety, convenience, and minimizing interference with customer parking and pedestrian areas.
Option C is located on a one-way street that allows trucks to enter or exit smoothly without conflicting with two-way traffic or customer parking. Since the street next to point C is one-way with traffic moving away from the intersection, trucks exiting at C can merge safely and efficiently into traffic.
Option A is adjacent to customer parking, and a truck entrance here would interfere with customer access and create safety hazards.
Option B is positioned near a traffic light on a two-way street, which may complicate truck maneuvering and increase congestion at the intersection.
Option D is on a two-way street and near an intersection, which could disrupt traffic flow and cause potential safety conflicts with turning vehicles and pedestrians.
NCARB's ARE 5.0 PPD content emphasizes locating service and delivery entrances away from customer areas and at points that allow safe, efficient truck access without disrupting primary pedestrian and vehicle circulation.
ARE 5.0 Project Planning & Design Content Outline: Project Integration of Program and Systems --- Site Planning and Vehicular Circulation
The Architect's Handbook of Professional Practice, 15th Edition, Chapter 7: Site Design and Vehicle Circulation
NCARB PPD Study Guide: Urban Site Planning and Circulation
________________________________________
An architect has just received client approval of the Schematic Design documents for a three-story, outpatient medical clinic. The clinic is located within a mixed-use development governed by
a City-approved Planned Development (PD) document. The medical clinic design utilizes standardized departmental layouts and includes outpatient clinics, as well as treatment spaces,
administrative spaces and public/lobby spaces.
The site needs to accommodate four different vehicular traffic flows: patient traffic, staff traffic, service and delivery traffic, and emergency services traffic. In addition, a pedestrian plaza
must connect to the mixed-use development sidewalks. The plaza must provide space for bicycle parking and will serve as the future bus stop.
The site design addresses several challenges related to building orientation. The southeast facade, with excellent visibility from the highway, is the location of all service equipment. The
building entrance faces northwest, convenient to the parking but not visible from the highway.
The client believes future patient volumes will outgrow the clinic. The PD document allows for a planned Phase 2 development on the adjacent vacant site to the southwest. Phase 2 would
include a second building (2 story, 80,000 BGSF) and/or a parking deck.
Other considerations for the project include:
Protected tree requirements are defined in the PD document.
Easy pedestrian access must be provided from Sycamore Boulevard.
All required parking for the clinic must be accommodated on site.
Programmed area includes 109,450 Departmental Gross Square Feet (DGSF) / 130,184 Building Gross Square Feet (BGSF).
Exterior material percentages are dictated by the PD document and shall not exceed specific percentages for Primary and Secondary Finishes.
All service equipment needs to be screened; see PD document for restrictions.
Signage opportunities are important to the client.
Acoustical privacy is a concern of the healthcare system.
The following resources are available for your reference:
Drawings, including a perspective, plans, and exterior elevations
Building Program, including client's departmental program and detailed program for Treatment 01 (Infusion)
Exterior Material Cost Comparisons
Planned Development Document
IBC Excerpts, showing relevant code sections
ADA Excerpts, showing relevant sections from the ADA Standards for Accessible Design
The owner is considering fitting out part of the shell space on the third floor as a cafeteria with tables and chairs and a 1,000-square-foot kitchen. The architect notes that the aggregate
occupant load is 325 for the spaces already planned for the third floor and the proposed kitchen.
What is the net area that can be allocated to the cafeteria before a third exit stair is needed from the third floor?
Comprehensive and Detailed Explanation From Exact Extract:
According to IBC egress requirements, the number of exits depends on occupant load and travel distance. For occupant loads over 300, additional exits (such as a third exit stair) may be required.
Given the current occupant load (325 including kitchen), the net area allowed for the cafeteria before requiring a third exit stair can be calculated based on occupant load factors for dining areas (typically about 15 sq ft per occupant).
Multiplying occupant load capacity by occupant load factor yields the net area.
The value 2,625 square feet (Answer B) corresponds to the maximum area before exceeding the occupant load threshold requiring a third exit stair.
IBC Chapter 10 -- Means of Egress
ARE 5.0 PPD -- Codes and Regulations
A recital hall requires a clear span of 75 feet. Special consideration must also be given to the prevention of airplane noise that would interfere with performances.
Which of the following wall-bearing structural solutions will provide the most reasonable and economical roof-framing system to meet these needs?
Comprehensive and Detailed Explanation From Exact Extract:
For a recital hall needing noise reduction and a 75-foot clear span:
Cast-in-place reinforced concrete slabs (B) provide mass and stiffness, reducing noise transmission (including airplane noise) and offering sound isolation.
Steel joists and wood beams (A, D) are lighter, less dense, and less effective acoustically.
Precast concrete tees (C) may provide structural support but less acoustic mass.
Therefore, cast-in-place concrete best balances span, acoustics, and cost.
ARE 5.0 PPD -- Building Systems and Assemblies, Acoustic and Structural Design
Which of the following design elements will affect pedestrian security within a site? Check the four that apply.
Comprehensive and Detailed Explanation From Exact Extract:
Pedestrian security depends on the design and management of the site to reduce hiding spots, increase visibility, and encourage natural surveillance:
Type of landscaping (B): Dense, tall, or thorny plants can deter access or obstruct views, while low, transparent landscaping improves visibility and security.
Number of site access points (D): More access points can increase vulnerability unless properly controlled.
Transparency of fences and barriers (E): Transparent or see-through fences improve visibility and reduce concealment areas, enhancing security.
Location of adjacent activity (F): Adjacent active uses or areas with high foot traffic provide natural surveillance, discouraging crime.
Impervious pavement (A) relates to surface permeability and drainage but not directly to security.
Parking quantity (C) impacts traffic and congestion more than pedestrian security.
ARE 5.0 PPD -- Environmental Conditions and Context, Site Planning and Security
The Architect's Handbook of Professional Practice, 15th Edition -- Crime Prevention Through Environmental Design (CPTED)
An architect has just received client approval of the Schematic Design documents for a three-story, outpatient medical clinic. The clinic is located within a mixed-use development governed by
a City-approved Planned Development (PD) document. The medical clinic design utilizes standardized departmental layouts and includes outpatient clinics, as well as treatment spaces,
administrative spaces and public/lobby spaces.
The site needs to accommodate four different vehicular traffic flows: patient traffic, staff traffic, service and delivery traffic, and emergency services traffic. In addition, a pedestrian plaza
must connect to the mixed-use development sidewalks. The plaza must provide space for bicycle parking and will serve as the future bus stop.
The site design addresses several challenges related to building orientation. The southeast facade, with excellent visibility from the highway, is the location of all service equipment. The
building entrance faces northwest, convenient to the parking but not visible from the highway.
The client believes future patient volumes will outgrow the clinic. The PD document allows for a planned Phase 2 development on the adjacent vacant site to the southwest. Phase 2 would
include a second building (2 story, 80,000 BGSF) and/or a parking deck.
Other considerations for the project include:
Protected tree requirements are defined in the PD document.
Easy pedestrian access must be provided from Sycamore Boulevard.
All required parking for the clinic must be accommodated on site.
Programmed area includes 109,450 Departmental Gross Square Feet (DGSF) / 130,184 Building Gross Square Feet (BGSF).
Exterior material percentages are dictated by the PD document and shall not exceed specific percentages for Primary and Secondary Finishes.
All service equipment needs to be screened; see PD document for restrictions.
Signage opportunities are important to the client.
Acoustical privacy is a concern of the healthcare system.
The following resources are available for your reference:

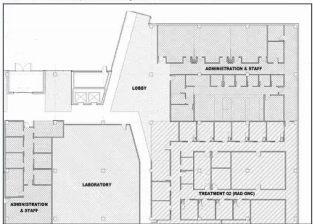

Drawings, including a perspective, plans, and exterior elevations
Building Program, including client's departmental program and detailed program for Treatment 01 (Infusion)
Exterior Material Cost Comparisons
Planned Development Document
IBC Excerpts, showing relevant code sections
ADA Excerpts, showing relevant sections from the ADA Standards for Accessible Design
Which of the following design solutions best addresses the client's concerns related to building orientation, vehicular circulation, and future expansion?
Comprehensive and Detailed Explanation From Exact Extract: The design must balance client priorities, regulatory requirements, and site conditions:
Vehicular Circulation: Separating traffic flows by function reduces conflicts and improves safety---patients, staff, deliveries, and emergency vehicles each require distinct circulation paths.
Building Orientation: The main entrance facing northwest towards parking prioritizes user convenience, even if this orientation has less highway visibility. The southeast facade, visible from the highway, is dedicated to service equipment screened per PD document restrictions.
Pedestrian Plaza: Providing a pedestrian plaza connected to mixed-use development sidewalks, with bicycle parking and bus stop, aligns with site accessibility and transit integration goals.
Future Expansion: Positioning the site elements to accommodate Phase 2 on the adjacent southwest vacant site facilitates growth without major disruption.
Screening and Material Use: Service equipment screening and adherence to PD exterior material percentages maintain design compliance.
Acoustical Privacy: The layout supports departmental adjacency and separation for privacy, crucial in healthcare design.
Option B best addresses these concerns and reflects the project's functional, regulatory, and contextual needs as outlined in NCARB ARE 5.0 Project Integration and Site Planning content.
ARE 5.0 Project Planning & Design Content Outline: Project Integration of Program and Systems --- Site Planning and Circulation
City-approved Planned Development Document
ADA Standards for Accessible Design
The Architect's Handbook of Professional Practice, 15th Edition, Chapters 6 and 7 on Site Design and Program Integration
