When you need to visualize the hop-by-hop journey of a packet across a multi-vendor or Junos-based network, traceroute is the definitive operational tool. Unlike ping, which merely confirms end-to-end reachability by eliciting an Echo Reply, traceroute provides a clinical breakdown of every Layer 3 device (router or switch) in the path.

The mechanics of this tool are quite clever: it sends out a sequence of packets (usually UDP or ICMP) with an increasing Time-to-Live (TTL) value, starting at 1. When the first router receives the packet, it decrements the TTL to 0, discards the packet, and sends an ICMP 'Time Exceeded' message back to the source. This informs your Junos device of the first hop's identity. This process repeats, incrementing the TTL each time, until the packet reaches the final destination. This path discovery is vital for identifying where traffic might be diverted by a misconfigured routing policy or where latency is being introduced in the network fabric. While monitor interface traffic gives you real-time throughput on a local port and SNMP provides historical telemetry to a management station, neither can map the external topological path like traceroute. In the Junos CLI, you can even specify the source address or bypass the routing table to test specific egress paths.

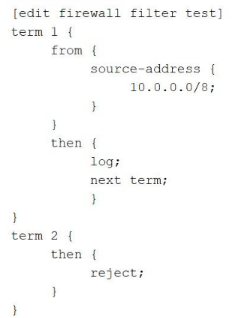

Junos OS routing policies are evaluated using a sequential, 'first-match' logic. When a route is compared against a policy, the system evaluates the terms in the order they are defined. Once a route meets all the match criteria (the from statement) in a term, the router executes the associated action (the then statement).

If the action is a terminating action---such as accept or reject---the evaluation of that specific route for that specific policy ends immediately. In this scenario, since the route matched the first term and the action was accept, the route is successfully processed and the policy evaluation is complete. The system will not proceed to evaluate the second or third terms. This behavior is critical for network architects to understand when ordering terms; more specific 'exceptions' must be placed at the top of the policy, while broader 'catch-all' terms must be placed at the bottom. If the administrator wanted the evaluation to continue to the next term despite a match, they would need to explicitly include the next term action, which is a non-terminating action. Without it, a match on an accept action signifies the final decision for that route within that policy context.

To effectively troubleshoot packet forwarding in a Junos environment, an architect must distinguish between the control plane's Routing Information Base (RIB) and the data plane's Forwarding Information Base (FIB). While the command show route displays the RIB (the master routing table maintained by the Routing Engine), it does not necessarily reflect the actual instructions being executed by the hardware. The definitive command for viewing the data plane's active path selection is show route forwarding-table.

Executing this command reveals the contents of the FIB as it has been pushed from the Routing Engine to the Packet Forwarding Engine (PFE). The output provides critical diagnostic data, including the destination prefix, the specific next-hop IP address, the interface through which the packet will egress, and the type of route (such as unicast or broadcast). This is the 'ground truth' for packet movement; if a route exists in the RIB but is missing from the forwarding table, it indicates a failure in the communication between the RE and PFE. Utilizing this command is the primary method for identifying black holes, incorrect next-hop resolution, or issues with hardware-level filter applications that might be impacting transit traffic flow at wire speed.

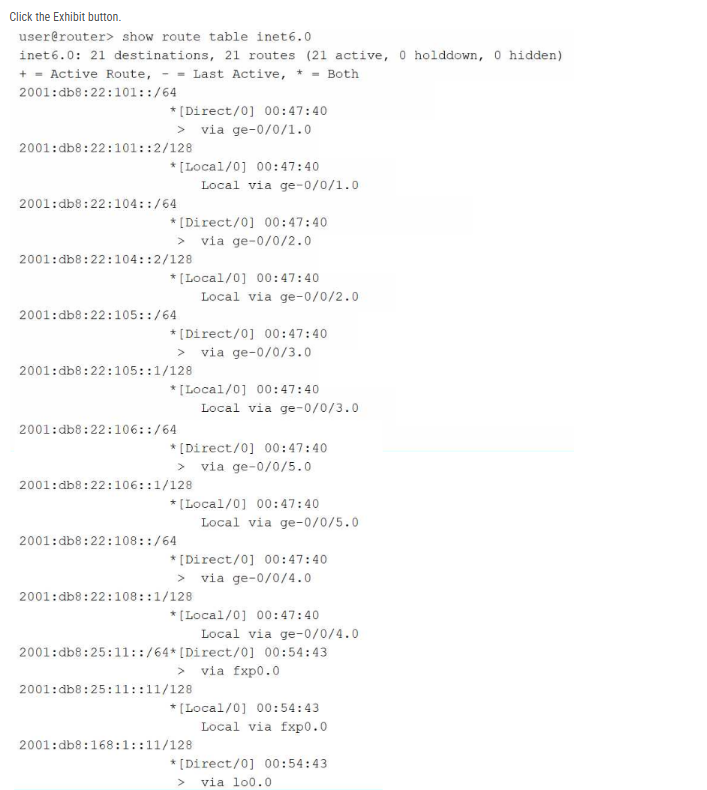

In modern Junos OS versions, the most efficient and standard way to isolate Out-of-Band (OOB) management traffic from transit traffic is by utilizing the management-instance. Historically, management interfaces like fxp0 (on M/MX/T series) or me0 (on EX/QFX series) shared the global routing table (inet.0), which could lead to routing conflicts if management subnets overlapped with production data.

To resolve this, Junos introduced the set system management-instance command. When this is enabled, the OS automatically creates a dedicated routing instance named mgmt_junos. The physical management interface (be it fxp0, em0, or me0) and its associated logical unit are moved into this private instance. This creates a complete separation: management protocols like SSH, SNMP, and NTP operate within mgmt_junos, while BGP, OSPF, and customer data remain in inet.0. This architecture ensures that even a massive routing loop or table exhaustion in the production plane will not prevent an administrator from accessing the device via the OOB port. Furthermore, it simplifies the configuration of default gateways for management traffic, as the mgmt_junos instance maintains its own independent routing table (mgmt_junos.inet.0), preventing management routes from ever being leaked into the provider core.

In the Junos OS architecture, configuration groups (defined under the [edit groups] hierarchy) provide a powerful mechanism for template-based management. This approach is specifically designed to handle scenarios where multiple configuration objects, such as twenty different Ethernet interfaces, require identical parameters like a specific description or MTU value. By defining these common settings once within a group, an administrator can then apply that group to multiple interfaces using the apply-groups statement.

This methodology drastically reduces the number of repetitive commands required and, more importantly, ensures strict consistency across the device. If the MTU needs to be adjusted in the future, the change is made in a single location---within the configuration group---and is automatically inherited by all interfaces to which the group is applied. This inheritance model prevents 'configuration drift' where individual interfaces might otherwise end up with mismatched settings due to manual entry errors. Using configuration groups is considered a best practice for Senior Architects managing high-density platforms, as it simplifies the candidate configuration file and makes the management of bulk interface settings both scalable and error-resistant.

The Junos OS CLI is engineered with an extensive, self-contained help subsystem designed to provide immediate technical guidance without requiring constant reference to external manuals. The help command is a versatile tool that operates through several key sub-commands: topic, reference, and log. While help topic provides conceptual overviews and help reference displays specific configuration syntax and hierarchical requirements, the help log command is specifically tailored for system maintenance and troubleshooting.

The primary purpose of help log is to provide a detailed explanation for specific system log error messages generated by the device. When a Junos daemon or process writes an entry to the syslog, it includes a unique message identifier or 'tag.' By executing help log <message-tag>, an architect can retrieve a clinical breakdown of why the message was generated, the severity of the event, and often the recommended action to resolve the underlying issue. This capability is vital for rapid interpretation of complex system events in real-time. It ensures that administrators have authoritative, context-aware information directly at the terminal, effectively bridging the gap between raw diagnostic output and actionable technical intelligence within the Junos environment. Reference: User Interfaces, CLI Help Facilities, help log.
