The Huawei H12-811_V2.0 exam validates your competency as a Huawei Certified ICT Associate in data communication networking. This certification demonstrates that you understand core networking concepts, can configure and troubleshoot network infrastructure, and are ready to support enterprise environments. This page maps the exam syllabus, explains question formats, and guides your preparation strategy so you can study efficiently and confidently approach test day.
Use this topic map to guide your study for Huawei H12-811_V2.0 (HCIA-Datacom V2.0) within the Huawei Certified ICT Associate path.
The H12-811_V2.0 exam combines multiple-choice and scenario-based items to assess both foundational knowledge and practical decision-making. Questions progress in difficulty and require you to apply concepts to real-world situations rather than simply recall facts.
Questions are designed to mirror challenges you will face in production environments, so practical experience with Huawei devices and network troubleshooting strengthens your performance.
An efficient study plan maps each of the eight topics to weekly milestones and combines passive learning with active practice. Allocate more time to topics that carry higher exam weight and those in which you have less hands-on experience. Consistency and deliberate review of weak areas yield better results than cramming.
Explore other Huawei certifications: view all Huawei exams.
Strengthen your preparation with up-to-date resources from validexamdumps.com. These materials align to H12-811_V2.0 and cover practical scenarios with clear explanations.
Visit the exam page to download the PDF, Online Practice Test or get Bundle Discount offer for both formats: HCIA-Datacom V2.0.
Ethernet Technology Basics, IP Technology Basics, and Network O&M and Troubleshooting tend to represent a larger portion of the exam because they are foundational to day-to-day network operations. However, all eight domains are important; the exam validates well-rounded competency across the full data communication stack. Review the official exam blueprint and allocate study time proportionally.
In a typical campus deployment, you start with network design (Typical Campus Networking Solution), define IP subnetting and routing (IP Technology Basics), configure VLANs and switching (Ethernet Technology Basics), add wireless coverage (WLAN Technology Basics), implement firewalls and access controls (Network Security and Services), ensure redundancy and failover (Data Center Network Basics), and then monitor and troubleshoot the live system (Network O&M and Troubleshooting). Understanding these connections helps you answer scenario-based questions and prepares you for real-world work.
While the exam does not require you to configure devices during the test, practical experience significantly improves your confidence and reasoning. Aim to spend at least 20-30 hours in a lab environment: configure basic switches and routers, set up VLANs, practice static routing, and run diagnostic commands. If you lack access to physical equipment, network simulation software provides a realistic alternative. Hands-on work helps you understand cause-and-effect relationships that multiple-choice questions test.
Common pitfalls include confusing similar protocols (for example, VLAN tagging versus MAC learning), misinterpreting subnetting problems under time pressure, and overlooking the "best practice" aspect of scenario questions (choosing a technically correct but suboptimal answer). Another frequent error is neglecting troubleshooting methodology; candidates jump to conclusions instead of following a systematic approach. Review explanations for every practice question, not just the ones you miss, to internalize the exam's reasoning patterns.
Focus on high-weight topics and your identified weak areas rather than re-reading entire study materials. Do daily untimed question drills to reinforce concepts, then take one full-length mock exam under timed conditions to build stamina and pacing. Review the mock results carefully, paying special attention to questions you answered incorrectly or too slowly. Avoid learning new topics in the final week; instead, consolidate and refine your understanding of material you have already studied.

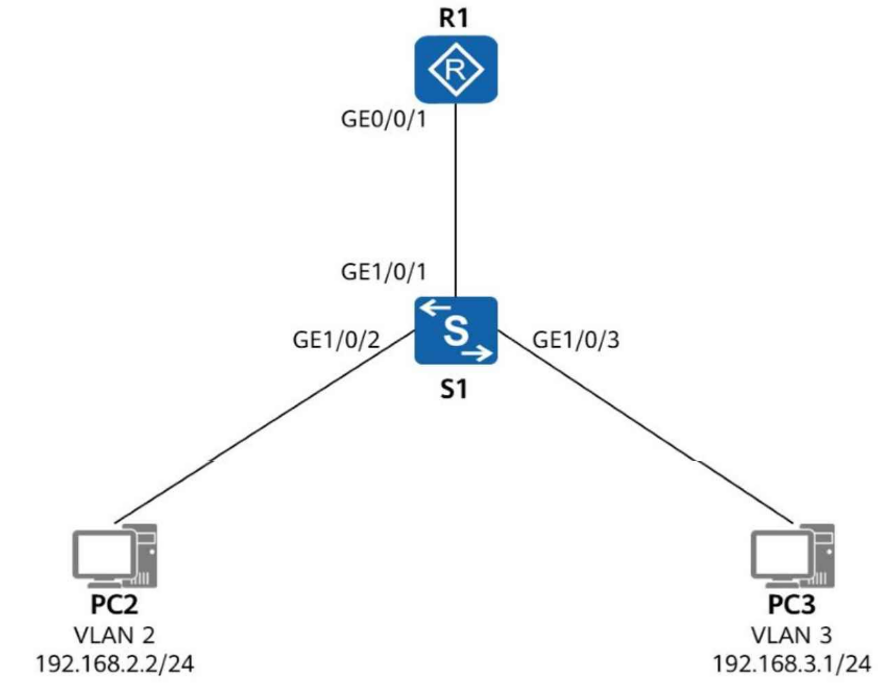

On the network shown in the figure, R1 serves as the gateway for PC2 and PC3, and directly connects to S1 through a physical link. GE1/0/1 on S1 is configured as a trunk interface and permits traffic of VLANs 2 and 3. Its PVID retains the default value. Which of the following statements are true if PC2 and PC3 can communicate with each other? (Select all that apply)
This scenario describes the classic router-on-a-stick inter-VLAN routing design. A single physical interface on R1 connects to switch S1, and multiple sub-interfaces are created on that physical interface to serve as gateways for multiple VLANs. Therefore, if R1 provides Layer 3 gateway functions for VLAN 2 and VLAN 3, sub-interfaces such as GE0/0/1.2 and GE0/0/1.3 must be configured, so option A is correct.
Because PC2 and PC3 are connected to switch S1, S1 learns their source MAC addresses dynamically and stores them in its MAC address table, making option B correct. R1 receives tagged frames from different VLANs on the trunk link and, through its sub-interfaces, can identify and terminate frames for VLAN 2 and VLAN 3, so option C is also correct. Option D is incorrect because hosts in different VLANs do not need to be connected to different physical switches; VLAN separation is logical, not necessarily physical. HCIA-Datacom uses this deployment to explain inter-VLAN communication, 802.1Q trunking, and flexible campus gateway design using limited router interfaces.

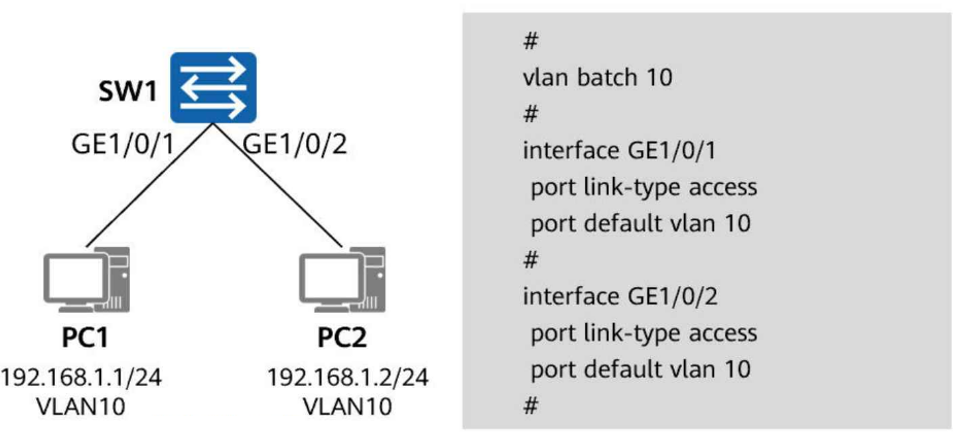

PC1 and PC2 are connected to the same switch, but they cannot learn each other's ARP information. This may be caused by incorrect VLAN configuration on the switch.
This statement is true. ARP is a Layer 2 broadcast-based protocol used to resolve an IPv4 address into a MAC address within the same broadcast domain. If two PCs are connected to the same switch but cannot learn each other's ARP entries, one likely reason is an incorrect VLAN configuration.
For example, if PC1 and PC2 are placed in different VLANs, or if one interface is configured with the wrong access VLAN, ARP broadcast frames from one PC will not reach the other PC because VLANs separate Layer 2 broadcast domains. As a result, the ARP request will not be received by the peer, and the MAC address cannot be resolved. Other causes may also exist, such as incorrect IP addressing, port isolation, or security policies, but VLAN misconfiguration is a very common and valid cause in campus switching scenarios. HCIA-Datacom teaches that ARP communication depends on correct Layer 2 domain membership, and VLAN planning or interface configuration errors often directly affect host-to-host communication even when both hosts are physically connected to the same switch.
In the figure, both PC1 and PC2 belong to VLAN 10. Interface GE1/0/1 on SW1 is a trunk interface with the default PVID, and interface GE1/0/2 on SW1 is an access interface in VLAN 10. Which of the following statements are true about the forwarding of data frames between PC1 and PC2? (Select all that apply)
When a switch receives an untagged frame from a user host on an access interface, it associates that frame with the VLAN configured on the interface. In this scenario, PC1 and PC2 are in VLAN 10, and GE1/0/2 is an access interface in VLAN 10. After SW1 receives the frame from PC1, it internally associates the frame with VLAN 10, so option A is correct in the practical VLAN-processing sense used in HCIA-Datacom questions.
When the frame is forwarded out an access interface toward PC2, the switch sends it without a VLAN tag, because end hosts normally do not process 802.1Q tags. Therefore, option D is correct. Option B is incorrect because both hosts are in the same VLAN and can communicate normally; SW1 does not discard the return traffic for that reason. Option C is not correct in the standard VLAN switching model used by Huawei training, because the switch performs forwarding based on VLAN membership and internally processes the frame as belonging to VLAN 10. This question mainly checks understanding of access/trunk behavior and tag handling on ingress and egress.
After the root bridge is elected on an STP network, which of the following parameters may be compared by ports on non-root bridge nodes to elect the root port? (Select all that apply)
On a non-root bridge, the root port is the port that receives the best BPDU toward the root bridge. STP selects the root port by comparing several parameters in order. The first important parameter is the root path cost (RPC), so option B is correct. If multiple ports have the same RPC, the switch then compares the bridge ID (BID) of the upstream device sending the BPDU, making option C correct. If those are still equal, the switch compares the port ID (PID) of the upstream sending port, so option D is also correct.
If all of those values remain identical from the switch's perspective, the device can finally compare the local port ID to determine which local interface becomes the root port, so option A is also correct. HCIA-Datacom teaches this comparison logic as part of STP election rules. The process ensures deterministic selection of a single root port on every non-root switch. Understanding the comparison sequence is essential for predicting STP topology behavior and for influencing port roles through path cost tuning or bridge-priority adjustments during campus network design and troubleshooting.
What is the broadcast address of the network that contains a host with IP address 192.168.1.147/28?
A /28 subnet mask corresponds to 255.255.255.240, which means each subnet contains 16 IP addresses. The subnet boundaries in the last octet increase in steps of 16: 0, 16, 32, 48, 64, 80, 96, 112, 128, 144, 160, and so on. The host address 192.168.1.147 falls within the subnet range 192.168.1.144 to 192.168.1.159.
In that subnet, the network address is 192.168.1.144, the usable host range is 192.168.1.145 through 192.168.1.158, and the broadcast address is 192.168.1.159. Therefore, option C is correct. Option D is the first usable host address, not the broadcast address. Option A is just another usable host address. Option B would be the broadcast address only for a /24 network, not for a /28. HCIA-Datacom requires learners to master subnetting because it is essential for IP planning, gateway deployment, route summarization, and troubleshooting Layer 3 communication issues in campus and enterprise networks.
