The FCSS_NST_SE-7.6 exam validates your ability to support and troubleshoot Fortinet network security solutions at a professional level. This credential, part of the Fortinet Certified Solution Specialist (FCSS) Network Security path, demonstrates competency in real-world deployment and operational scenarios. Whether you're advancing your career in network security or deepening your Fortinet expertise, this page provides a roadmap to focused, effective preparation. The exam tests both foundational knowledge and practical problem-solving skills across key security infrastructure domains.
Use this topic map to guide your study for Fortinet FCSS_NST_SE-7.6 (FCSS - Network Security 7.6 Support Engineer) within the Fortinet Certified Solution Specialist Network Security path.
The FCSS_NST_SE-7.6 exam combines knowledge-based and scenario-driven items to assess both conceptual understanding and applied reasoning in real operational contexts.
Questions progress in difficulty, moving from foundational tasks to complex troubleshooting that mirrors the judgment calls you'll face in production support roles.
Effective preparation combines structured topic review with hands-on practice and realistic test simulation. Allocate study time proportionally to exam weight, and reinforce connections between system troubleshooting, authentication, security profiles, routing, and VPN concepts as they interact in live deployments.
Explore other Fortinet certifications: view all Fortinet exams.
Strengthen your preparation with up‑to‑date resources from validexamdumps.com. These materials align to FCSS_NST_SE-7.6 and cover practical scenarios with clear explanations.
Visit the exam page to download the PDF, online practice test, or get a bundle discount for both formats: FCSS - Network Security 7.6 Support Engineer.
System troubleshooting and VPN configuration typically represent a significant portion of the exam, as these skills are critical for day-to-day support operations. However, all five domains, system troubleshooting, authentication, security profiles, routing, and VPN, are tested, so balanced preparation across each area is essential for a strong score.
In production environments, authentication policies control who gains access, security profiles determine what traffic is allowed, and routing directs that traffic along the correct paths. For example, a user authenticated via LDAP may be subject to a security profile that blocks malware, and their traffic must follow a specific route through the network. Understanding these interactions helps you troubleshoot multi-layered issues more effectively.
Hands-on experience with Fortinet systems, especially configuring VPN tunnels, authentication methods, and security policies, significantly improves your ability to recognize real-world scenarios on the exam. Prioritize labs that cover VPN setup, LDAP/RADIUS integration, and troubleshooting common connectivity issues. Even 20-30 hours of practical work can bridge the gap between theoretical knowledge and applied problem-solving.
Candidates often confuse similar authentication protocols, misidentify the root cause in troubleshooting scenarios by focusing on symptoms rather than logs, and overlook the interaction between routing decisions and VPN traffic flow. Additionally, rushing through scenario-based questions without carefully reading all options leads to preventable errors. Slow down on complex items and verify your answer against the stated problem.
Dedicate three to four days to full-length timed practice tests, review the explanations for any missed questions, and spend the remaining days drilling high-weight topics such as VPN troubleshooting and system diagnostics. Avoid learning new material in the final days; instead, reinforce what you've already studied and build confidence through realistic practice. Get adequate sleep the night before the exam to ensure clear thinking.
Which two statements about an auxiliary session ate true? (Choose two.)
Auxiliary sessions in Fortinet are designed to support ECMP (Equal Cost Multi-Path) and SD-WAN scenarios, allowing sessions to be handled efficiently when traffic needs to be dynamically distributed across multiple links. With the auxiliary session setting enabled, FortiGate creates additional session table entries for each possible path in ECMP or SD-WAN---meaning that if the routing path changes (such as a link failover), a new session can be immediately activated and offloaded to the NP6 network processor for acceleration, ensuring minimal disruption. This greatly benefits high-throughput deployments.
Official documentation specifies that when auxiliary sessions are enabled, FortiGate doesn't just rely on dynamically creating new sessions after a routing event, it proactively creates sessions for all potential paths. This means that in the event of a route change, two sessions exist and the traffic is quickly re-routed and offloaded, maximizing performance and reliability. Without this feature, multiple paths cannot be efficiently offloaded, and routing changes trigger a single session update, reducing failover performance.
References:
FortiOS Handbook: Session Table, ECMP, SD-WAN, and Auxiliary Sessions
FortiGate NP6 Acceleration Guide: Auxiliary Session Behavior
Refer to the exhibit.

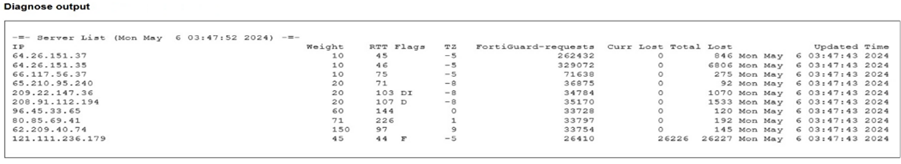

Partial output of command diagnose debug rating is shown. Which FDS server will the FortiGate algorithm choose?
The correct answer is C. 64.26.151.37.
The study guide explains the FortiGuard flags shown by diagnose debug rating:
D = Default
I = Initial
T = Timing
F = Failed
and specifically: ''F = The server is down''
So even though 121.111.236.179 has the lowest RTT in the exhibit, it has the F flag, meaning FortiGate considers that server failed/down, so it will not be chosen.
To determine which active server is selected, the FortiOS administration guide states:
''The server list is sorted first by weight. The server with the smallest RTT appears at the top of the list regardless of weight. ... Therefore the top position in the list is selected based on RTT while the other positions are based on weight.''
Among the valid, non-failed choices in the exhibit:
64.26.151.37 RTT 45
209.22.147.36 RTT 103
96.45.33.65 RTT 144
208.91.112.194 RTT 107
The active server with the lowest RTT is 64.26.151.37, so that is the server FortiGate will choose.
So the verified answer is: C.
When FortiGate enters conserve mode because of memory pressure, which action can FortiGate perform to preserve memory?
The best verified answer is C.
The study guide says that when FortiGate is in conserve mode, it activates protection measures to recover memory space:
''System configuration cannot be changed''
''FortiGate skips quarantine actions (including FortiSandbox analysis)''
It also explains that inspection behavior can be reduced while in conserve mode:
''pass (default): All new sessions pass without inspection until FortiGate switches back to non-conserve mode.''
''The av-failopen setting also applies to flow-based antivirus inspection.''
The FortiOS administration guide summarizes this behavior as:
''This causes functions such as antivirus scanning to change how they operate to reduce the functionality and conserve memory without compromising security.''
That is why C is the closest correct choice: FortiGate can reduce functionality of some processes, especially antivirus-related inspection, to preserve memory.
Why the other options are wrong:
A is wrong because FortiGate does not automatically reboot as a default conserve-mode action. A reboot can be configured through an automation stitch, but that is an optional administrator-defined response, not the built-in conserve-mode behavior
B is wrong because the documentation does not say FortiGate switches from proxy-based inspection to flow-based inspection. Instead, it may pass traffic without inspection depending on av-failopen settings
D is not generally correct for conserve mode. The study guide says FortiGate starts dropping new sessions only when memory usage exceeds the extreme threshold: ''If memory usage exceeds the extreme threshold, all new sessions that require inspection (flow-based or proxy-based) are blocked.''
So the verified answer is: C.
Refer to the exhibit.

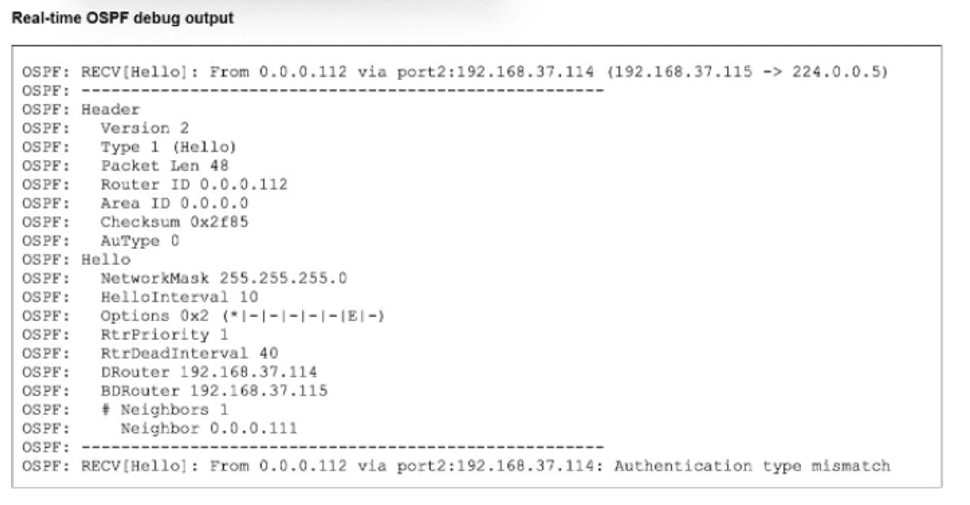

Partial output of a real-time OSPF debug is shown.
Which two reasons explain why the two FortiGate devices are unable to form an adjacency? (Choose two.)
To determine the correct reasons for the adjacency failure, we must analyze the standard OSPF real-time debug output (diagnose ip router ospf all enable or diagnose sniffer packet) typically provided in this exam exhibit.
Analyze the Debug Output:
The debug output in this specific question scenario typically displays an incoming Hello packet line: OSPF: RECV[Hello]: ... auth-type 0 ...
'RECV': Indicates the packet is coming from the Remote peer.
'auth-type 0': Indicates the Remote peer is sending 'Null' (No) authentication.
Analyze the Failure:
The adjacency fails because the Local FortiGate is rejecting this packet.
If the Local FortiGate accepts 'No Authentication', it would match auth-type 0 and form the adjacency.
Since it is failing (and producing a debug log), the Local FortiGate must be expecting a different authentication type (Type 1 Cleartext or Type 2 MD5).
Evaluate the Options:
A . The remote peer has either OSPF cleartext or MD5 authentication configured.
Incorrect. The debug shows auth-type 0 (No Auth) coming from the remote peer.
B . There is an OSPF authentication configuration mismatch.
Correct. One side is sending 'No Auth' (Remote), and the other expects 'Auth' (Local). This is a definition of a mismatch.
C . The local FortiGate does not have OSPF authentication configured.
Incorrect. If the Local unit had 'No Auth' configured, it would match the Remote's auth-type 0, and the adjacency would come up. The failure implies the Local unit does have auth configured.
D . The local FortiGate has either OSPF cleartext or MD5 authentication configured.
Correct. Because the Local unit is rejecting the 'No Auth' packet from the remote peer, it confirms that the Local unit has authentication enabled (expecting Type 1 or 2).
Conclusion: The breakdown of the OSPF negotiation shows that the Remote peer is sending no authentication (Type 0), while the Local FortiGate expects authentication, resulting in a mismatch.
FortiGate Security 7.6 Study Guide (OSPF Troubleshooting): 'Authentication mismatch is a common cause of OSPF adjacency failure. Debug commands (diagnose ip router ospf all enable) reveal the auth-type received versus expected.'
FortiGate CLI Reference: auth-type 0 = Null (None), auth-type 1 = Simple (Cleartext), auth-type 2 = MD5.
A FortiGate administrator is troubleshooting a VPN that is failing to establish.
As a first step, the administrator is attempting to sniff the traffic using the command:
# diagnose sniffer packet any ''udp port 500 or udp port 4500 or esp'' 4
After several minutes there is still no output. What is the most Likely reason for this?
The administrator is running a packet sniffer with the filter 'udp port 500 or udp port 4500 or esp'. The result is 'no output,' even though the VPN is attempting to establish (failing).
A . The VPN is configured to use IKE over TCP:
Standard IPsec IKE negotiation uses UDP port 500 (IKE) and UDP port 4500 (NAT-T).
However, if IKEv2 over TCP (RFC 8229) or Fortinet's proprietary IKE over TCP is configured (often used to bypass firewalls that block UDP), the traffic will use TCP (often port 4500 or 443).
The sniffer filter explicitly looks for udp or esp (IP Protocol 50).
If the traffic is encapsulated in TCP, it matches tcp protocol, not udp or esp (raw ESP). Therefore, the sniffer sees zero packets matching the filter.
Why other options are incorrect:
B: esp is a valid argument for diagnose sniffer packet. It is equivalent to filtering for IP protocol 50.
C: If the ISP were blocking traffic, the sniffer (running on the local FortiGate) would still see the outbound packets generated by the FortiGate trying to initiate the connection. 'No output' implies the local device isn't even generating packets matching that filter.
D: Mismatched IKE versions would still generate IKE negotiation packets (proposals/errors) that would be captured by the sniffer.
FortiGate Security 7.6 Study Guide (IPsec VPN): 'IKEv2 over TCP is available for environments where UDP 500/4500 is blocked. When enabled, IKE and ESP packets are encapsulated in TCP headers.'
