SRDF/Metro is a high-availability solution that provides synchronous replication between two storage arrays located within a metropolitan distance. It utilizes a witness to prevent data loss in the event of a split-brain scenario (where communication between the arrays is lost).

In SRDF/Metro, there can be only one Witness Group defined between two specific arrays. This Witness Group manages the witness device that acts as a tie-breaker in case of a communication failure between the arrays.

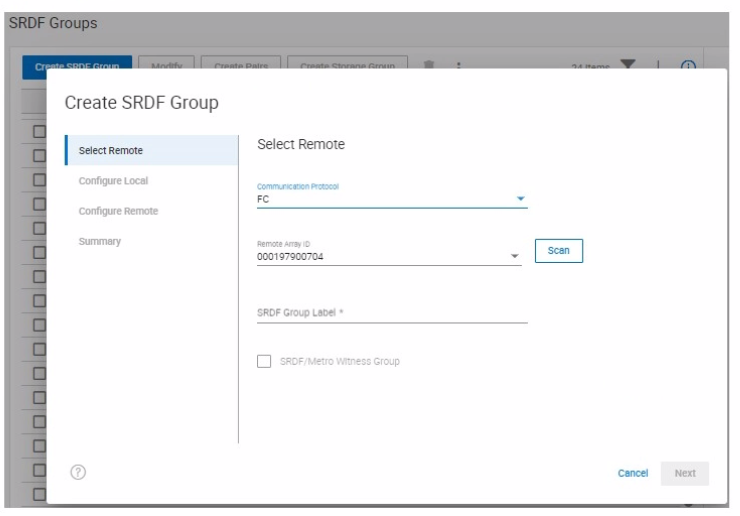

Since the exhibit shows that SRDF/Metro has already been configured between the two arrays using a physical witness, the option to create another SRDF/Metro Witness Group is grayed out because a Witness Group already exists for that pair of arrays.

Why other options are incorrect:

B . SRDF/Metro Witness Groups can only be created with CLI: While CLI can be used, Witness Groups can also be created through Unisphere for PowerMax.

C . The SRDF Group Label needs to be left blank when creating an SRDF/Metro Witness Group: This is not a requirement. Witness Groups can have labels.

Reference and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Solutions Enabler 10.0.0 SRDF Family CLI User Guide: This guide provides detailed information about SRDF/Metro configuration, including the role of the witness and the Witness Group. You can find this document on the Dell Support website by searching for 'Solutions Enabler SRDF Family CLI User Guide.'

Dell PowerMax Family: Essentials and Best Practices Guide: This guide offers a comprehensive overview of SRDF/Metro and its functionalities, including witness configuration and best practices.

Step by Step Comprehensive Detailed

A Gatekeeper in PowerMax is a small, dedicated device used for communication between the storage array and Solutions Enabler (SYMCLI), the command-line management interface. The default size of a Gatekeeper on a PowerMax array is 3 cylinders.

While the size can technically be specified in kilobytes (KB), the traditional and preferred unit for Gatekeeper size is cylinders. This is because cylinders represent a specific number of blocks on the physical disks, and using cylinders helps ensure consistent sizing across different disk types and configurations.

Why other options are incorrect:

A . 3 KB, C. 6 KB: These sizes are too small to be practical for a Gatekeeper.

Step by Step Comprehensive Detailed

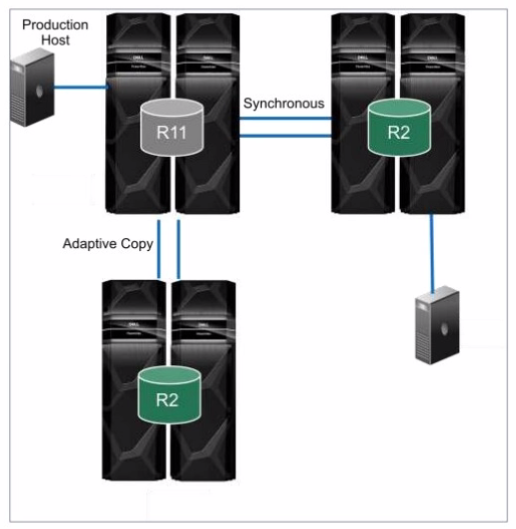

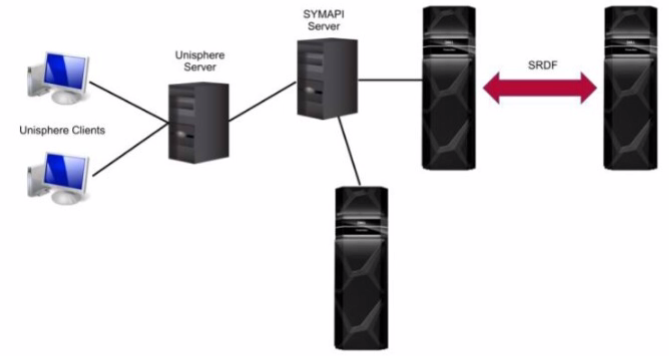

In SRDF (Symmetrix Remote Data Facility), an 'update' operation refers to a specific process where changes made on the target (R2) side are copied back to the source (R1) side. This is typically used in disaster recovery scenarios where:

Failover: A failover occurs, and the target (R2) becomes the active production site.

Data Modification: Data is modified or updated on the target (R2) while it's acting as the primary.

Update Operation: An 'update' is initiated to synchronize the changes from the target (R2) back to the source (R1), ensuring that the source has the latest data.

This process is crucial for maintaining data consistency and ensuring a smooth transition back to the original production site after a failover event.

Why other options are incorrect:

A . process to retain the data on the target R2 side: This is not specific to an 'update' operation. Data retention on the target is a general aspect of SRDF.

B . A process used to return to the original production site after a failover event: While an 'update' is part of the failback process, it's not the entire process itself. Failback involves other steps like reversing replication direction and restoring host access.

D . A process that allows separate hosts to access the same data independently: This describes a different SRDF configuration (like Active/Active) and is not related to the 'update' operation.

Reference and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Solutions Enabler 10.0.0 SRDF Family CLI User Guide: This guide provides detailed information about SRDF commands and operations, including the symrdf update command used to initiate an update from R2 to R1. You can find this document on the Dell Support website by searching for 'Solutions Enabler SRDF Family CLI User Guide.'

Dell PowerMax Family: Essentials and Best Practices Guide: This guide offers a comprehensive overview of SRDF and its functionalities, including disaster recovery scenarios and the use of the 'update' operation.

Step by Step Comprehensive Detailed

Non-Disruptive Migration (NDM) is a feature in PowerMax that allows you to migrate data between storage arrays without any downtime or disruption to host applications. During NDM, SRDF (Symmetrix Remote Data Facility) is used to replicate data between the source and target arrays. Here are the configuration rules that apply to SRDF groups and connections during NDM:

A . The source and target arrays are at most one hop away from the control host: The control host, which manages the NDM process, must have direct connectivity to both the source and target arrays. This ensures efficient communication and control during the migration.

E . DM RDF groups are configured with a minimum of one path: SRDF groups used for NDM (DM RDF groups) must have at least one active path between the source and target arrays. This ensures that data can be replicated continuously during the migration.

Why other options are incorrect:

B . Two DM RDF groups are created per SG migration session: This is not a strict requirement. The number of DM RDF groups may vary depending on the configuration and the specific NDM operation.

C . RF and RE ports are supported, with RF ports being selected if both types are available: While RF and RE ports are supported for SRDF, there's no specific preference for RF ports during NDM. The choice of ports depends on the overall network configuration and availability.

D . A single array cannot have multiple DM RDF groups: An array can have multiple DM RDF groups if needed for different NDM operations or configurations.

Reference and documents of Dell's public documentation for PowerMax Operate v.2:

Dell PowerMax Family: Essentials and Best Practices Guide: This guide provides an overview of NDM and its requirements, including information about SRDF configuration.

Dell Solutions Enabler 10.0.0 CLI User Guide: This guide provides detailed information about SRDF commands and configuration options, which are relevant for NDM operations.

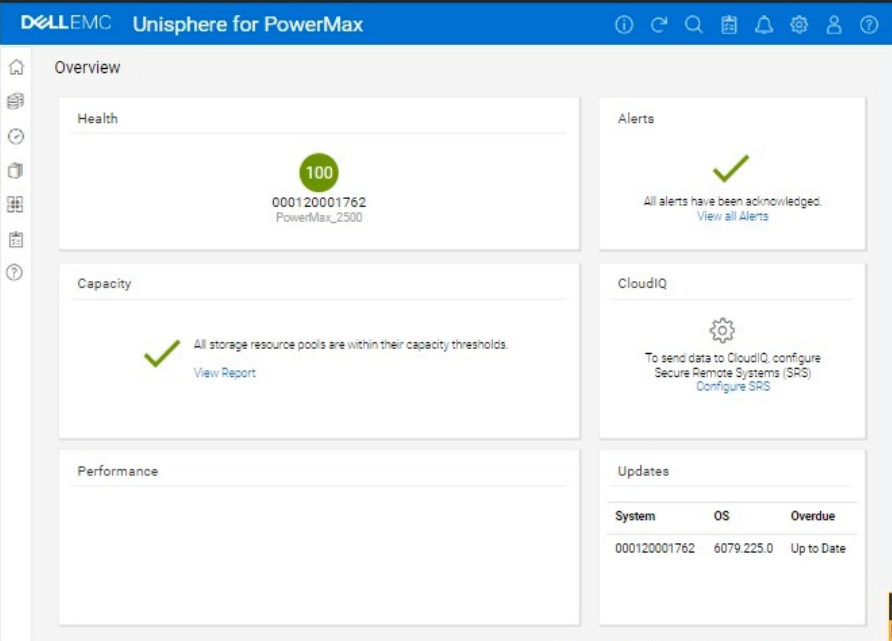

You want a detailed, step-by-step guide on how to add three 100 GB volumes to an existing host and change the service level of the associated storage group from Gold to Platinum on a PowerMax array, using the Unisphere for PowerMax interface shown in the image.

Here's a comprehensive guide, broken down into manageable steps:

Phase 1: Provisioning the New Volumes

Step 1: Log in to Unisphere for PowerMax

Open your web browser and enter the URL for your Unisphere for PowerMax management interface.

Log in with your administrator credentials.

Step 2: Navigate to Storage Groups

In the left-hand navigation pane, click on Storage to expand the storage management section.

Click on Storage Groups under the Storage section. This will display a list of existing storage groups on your PowerMax array.

Step 3: Locate the Target Storage Group

Identify the storage group that currently contains the host's existing two 100 GB volumes.

Tip: You can find this by:

Looking at the 'Hosts' tab within each storage group's details. It will list the hosts connected to that storage group.

If you know the host's name, you might be able to search for it using the Unisphere search bar (if available).

Step 4: Initiate Adding Volumes

Once you've found the correct storage group, select it by clicking on its name.

Look for a button or option related to adding volumes. The exact wording might vary slightly depending on your Unisphere version, but it could be:

'Add to Storage Group'

'+' (a plus icon, which often signifies adding something)

'Add Volumes'

Click this button to start the process of adding new volumes to the storage group.

Step 5: Configure Volume Details

A new window or panel will appear, allowing you to specify the characteristics of the new volumes.

Select 'Create new volumes'

Number of Volumes: Enter 3 in the field for the number of volumes.

Capacity: Enter 100 in the field for the capacity of each volume. Make sure the unit is set to GB.

Volume Name (Optional): You can give the volumes a specific name or prefix, or you can let Unisphere auto-generate names.

Service Level: Since the final goal is to move the entire Storage Group to platinum, you can either set this to platinum now or change it for the whole group later.

Other Settings: Review any other available settings (e.g., thin provisioning, data reduction). In most cases, the default settings should be fine, but adjust them if needed based on your environment's best practices.

Step 6: Execute Volume Creation

After you've configured all the volume settings, review them carefully to make sure they are correct.

Click the button to execute the operation. This button might be labeled:

'Run Now'

'OK'

'Finish'

'Apply'

Unisphere will start creating the new volumes. This might take a few moments.

Phase 2: Changing the Storage Group's Service Level

Step 7: Navigate Back to Storage Groups

Once the volume creation is complete, go back to the list of storage groups. You can usually do this by clicking 'Storage Groups' in the left-hand navigation pane again.

Step 8: Select the Target Storage Group

Find the same storage group you worked with in Phase 1 (the one containing the host's volumes).

Click on the storage group's name to open its properties.

Step 9: Modify the Service Level

Look for a setting related to the 'Service Level.' It might be a dropdown menu, a field you can edit, or a link to a separate settings page.

Change the Service Level from Gold to Platinum.

Step 10: Save the Changes

Click the button to save the changes to the storage group's service level. This button might be labeled:

'Apply'

'Save'

'OK'

Phase 3: Host-Side Configuration

Step 11: Rescan for New Storage on the Host

The host needs to be made aware of the newly provisioned storage. The exact process for this depends on the host's operating system:

Windows:

Open Disk Management (diskmgmt.msc).

Go to Action > Rescan Disks.

Linux:

Identify the SCSI host bus numbers (e.g., ls /sys/class/scsi_host).

Use the command echo '- - -' > /sys/class/scsi_host/hostX/scan, replacing hostX with the appropriate host bus number.

You might also be able to use tools like rescan-scsi-bus.sh.

VMware ESXi:

In the vSphere Client, select the host.

Go to Configure > Storage Adapters.

Select the relevant storage adapter (e.g., your HBA).

Click Rescan Storage.

Step 12: Initialize, Partition and Mount (if needed):

Once the host detects the new volumes, you'll need to initialize them, create partitions, format them with a filesystem, and mount them, depending on your operating system and how you intend to use the storage. This is done using the host's operating system tools.

Phase 4: Verification and Monitoring

Step 13: Verify in Unisphere

Go back to the storage group in Unisphere and check the 'Volumes' tab. You should see the three new 100 GB volumes listed along with the original two, and they should all have the 'Platinum' service level.

Step 14: Verify on the Host

Confirm that the host can see and access the new volumes.

Step 15: Monitor Performance

After making these changes, monitor the performance of the storage group and the application using Unisphere's performance monitoring tools. Ensure that the Platinum service level is meeting your application's requirements

Step by Step Comprehensive Detailed

Solutions Enabler (SE) uses various daemons (background processes) to perform different functions. The storstpd daemon is specifically responsible for:

Collecting Performance Statistics: It gathers performance data from the connected storage arrays, such as I/O rates, response times, and other metrics.

Managing Performance Data: It stores and manages the collected performance statistics, making them available for monitoring and analysis through tools like Unisphere for PowerMax.

This data is crucial for understanding the performance of the storage arrays, identifying potential bottlenecks, and optimizing storage resources.

Why other options are incorrect:

B . Coordinates storage array locks and application syscalls: This is the function of the storapid daemon.

C . Starts the system watchdog timer periodically: This is not directly related to the storstpd daemon.

D . Performs remote Solutions Enabler API functions: This is typically handled by the storsrvd daemon.

Reference and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Solutions Enabler 10.0.0 CLI User Guide: This guide provides information about the different daemons used by Solutions Enabler and their roles. You can find this document on the Dell Support website by searching for 'Solutions Enabler CLI User Guide.'

Step by Step Comprehensive Detailed

Both the PowerMax 2500 and 8500 utilize NVMe over Fabrics (NVMe-oF) for high-speed data transfer. However, they differ in their internal fabric architecture:

PowerMax 2500: Uses a direct NVMe/PCIe connection between the compute nodes and the Dynamic Media Enclosures (DMEs).

PowerMax 8500: Employs a fully switched InfiniBand (IB) fabric for all NVMe-oF traffic. This means that the compute nodes and DMEs are interconnected through InfiniBand switches, providing a high-performance, low-latency, and scalable fabric for data transfer.

Therefore, the use of InfiniBand switches is a feature unique to the PowerMax 8500 compared to the PowerMax 2500.

Why other options are incorrect:

A . Persistent Memory: Both PowerMax 2500 and 8500 utilize Storage Class Memory (SCM), which is a type of persistent memory.

B . Mainframe Connectivity: Both models support mainframe connectivity.

C . Storage Class Memory: As mentioned above, both models use SCM.

Reference and documents of Dell's public documentation for PowerMax Operate v.2:

PowerMax 2500 and 8500 Dynamic Fabric---A High-Performance Clustered Architecture for Enterprise Storage: This white paper provides a detailed comparison of the Dynamic Fabric architecture in both models, highlighting the use of InfiniBand switches in the PowerMax 8500. You can find this document on the Dell Technologies Info Hub.

Dell PowerMax Family: Essentials and Best Practices Guide: This guide offers a general overview of the PowerMax family, including the 2500 and 8500 models. It may provide context for understanding the differences in their architecture and features.
